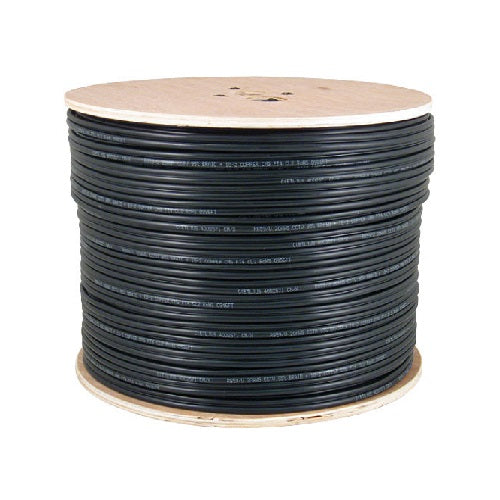

2000′ 24 AWG 4 Pairs Black CAT5E CMXT Direct Burial Shielded LSZH Jacket Cable
DESCRIPTION :
Category-5E Direct Burial, STP w/Drain Wire, 8-Conductor, Waterproof Outdoor Jacket, 24AWG Solid-Bare Copper.
FEATURES :
⦿ High-Performance Data Cable
⦿ 350MHz Bandwith for Data Applications,
Fast Ethernet and 155Mbps TP-PMD/CDDI
⦿ Category-5E Shielded Twisted Pair
⦿ Easily Identified Color-Striped Pairs
⦿ 24 AWG Solid Copper Conductors
⦿ Exceeds TIA/EIA-568C.2, ISO/IEC 11801
⦿ CAN/CSA -C22.2 No. 214
⦿ Direct Burial Gel Filled (Flooded Core)
⦿ ETL Listed
⦿ 2000 ft Wooden Spool
Technical Data :
⦿ Rated Temperature 75 ºC
⦿ Rated Voltage 60V
⦿ Product Standard Certification CMX
⦿ Flammability Test IEC-332-1
Conductor Solid Bare Copper :
⦿ Size 24 AWG (0.51mm)
Insulation PE :
⦿ Average Thickness (mm) 0.208
⦿ Insulation Diameter (±0.005mm) 0.91
⦿ Twisted Pair Diameter (±0.01) 1.92

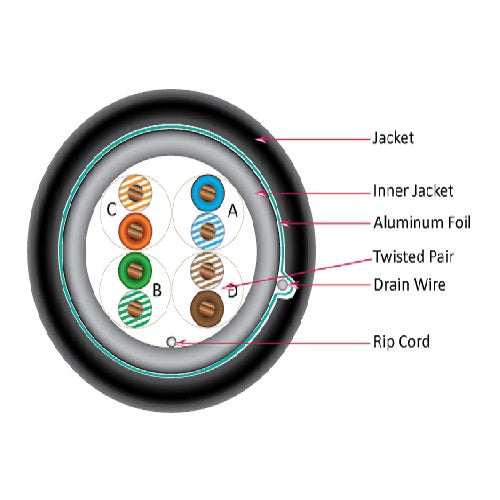

Assembly Diameter (3.80 mm) :
Inner Jacket (Gray) PVC
⦿ Average Thickness (mm) 0.40
⦿ Min. Point Thickness (mm) 0.36
⦿ Outer Diameter (±0.10mm) 4.80
⦿ AL Foil Yes
⦿ Drain Wire (Tinned Copper) 7/0.16
Outer Jacket (Black) LSZH (UV)
⦿ Average Thickness 0.60
⦿ Min. Point Thickness 0.54
⦿ Outer Diameter 06.20±0.10
⦿ Rip Cord Yes
Color of Pairs :
⦿ Pair 1:Blue,White-Blue Pair 2:Orange,White-Orange
⦿ Pair 3:Green,White-Green Pair 4:Brown,White-Brown
Mechanical Characteristics :
⦿ Test Object Jacket
⦿ Test Material LLDPE
⦿ Before Tensile Strength (Mpa) ≥13.8
⦿ Aging Elongation (%) ≥100
⦿ Aging Condition (ºCxhrs) 100×168
⦿ After Tensile Strength (Mpa) ≥85% of unaged
⦿ Aging Elongation (%) ≥50% of unaged
⦿ Cold Bend (-40±2º Cx4hrs) No Crack
⦿ Bend Radius > 20mm
Marking on Jacket :
⦿ VERTICAL 4001453 cETLus VERIFIED CMX STP 4PR 24AWG OUTDOOR DIRECT BURIAL (DRY) UV LSZH CAT5E 350MHz TIA/EIA – 568C.2 RoHS XXXFT (SEQUENTIAL FOOT MARKERS ON JACKET)
