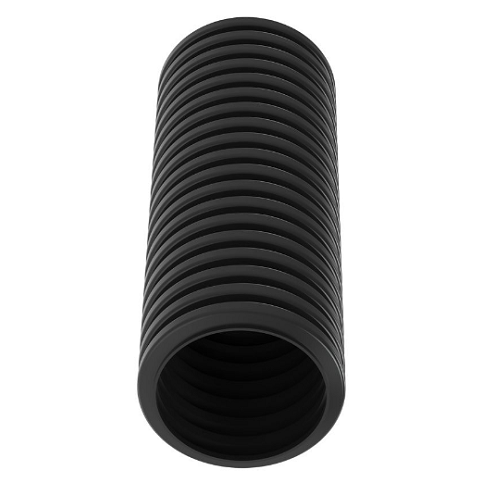

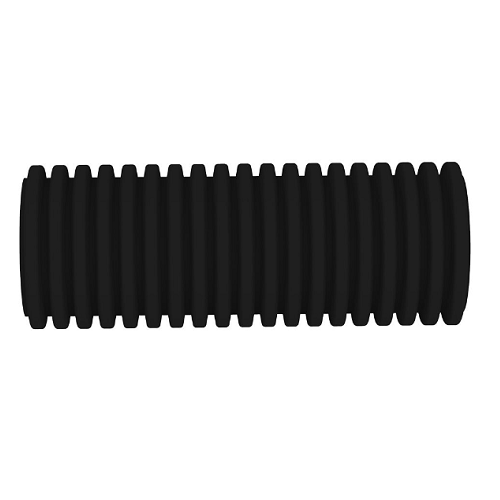

2000FT 0.75 Corrugated Loom Tubing Slit Wall Polyethylene CLT75F-2M20
[pdf] [/pdf]
About:
The CLT75F-2M20 is a specific type of corrugated loom tubing that comes in a length of 2000ft and has a 0.75″ diameter. Made of polyethylene, this type of tubing is durable and flexible, making it ideal for protecting a variety of cable types over long distances.
Also Known As:
• Protective conduit
• Flexible wire loom
• Corrugated cable tubing
• Cable protector
Common Applications:
Covers wire and cable to protect from abrasion
Standards Met:
RoHS Compliant
Construction:
• Material: Made of polyethylene, resistant to environmental and chemical elements.
• Design: Corrugated exterior with a slit wall, facilitating ease of installation and flexibility.
• Size: 0.75″ diameter makes it capable of housing larger cable assemblies.
Features:
Provides protection for cables. Slitted for easier install onto a bundle of wires or a pre-assembled harness assembly
Specification:
| Note: | Slit Wall |
| Product Type: | Corrugated Loom Tubing |
| Color: | Black |
| Environment: | Indoor |
| Flammability Rating: | UL94-HB |
| Inside Diameter: | 0.762 In. (19.35mm) |
| Material: | Polyethylene |
| Resistance Properties: | Provides light crush and impact resistance |
| Maximum Operating Temperature: | 50°C (122°F) |
| Minimum Operating Temperature: | -40°C (-40°F) |
| Nominal Diameter: | 0.75 In. (19.05mm) |
| Outer Diameter: | 0.933 In. (23.7mm) |
| Overall Length: | 2000 Ft (609.6m) |
| Part No: | CLT75F-2M20 |
