208V 1-3Phase KBP Garage Unit Heater Onyx Gray
[pdf] [/pdf]
| Type | Unit Heater |
| Watts | 5700-2850 |
| Color | Onyx Gray |
| Temp. Rise | 67 – 34 |
| AMPS | 15.8-7.9 |
| CFM | 270 |
| Volts | 208 |
| BTUH | 19,454 – 9,727 |
| Phase | 1-3 |
| Air Throw | 12ft. |
| Mount Height | 8 ft. max. |
| Weight | 26 lbs |
| UPC | 093319151938 |
| Part Number | KBP2006-3MP |
* 3-Phase units do not have Heat / Fan / Off **Prewired for 3-Phase, Field Convertable to 1-Phase

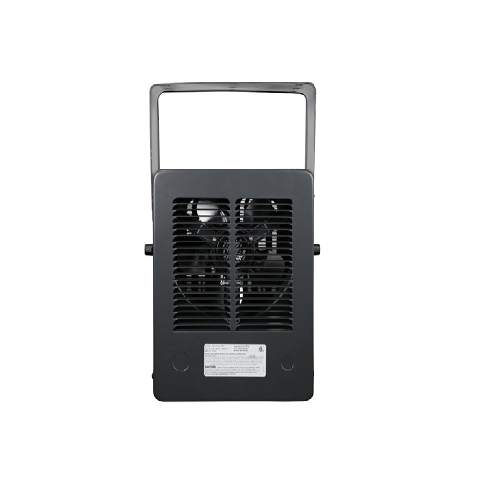

King KBP2006-3MP Compact Unit Heater 208V 1-3PH
Description:

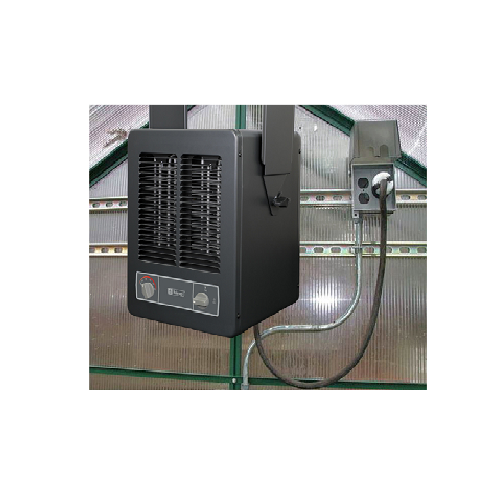

The KBP is the industry standard for multi-wattage garage / shop heaters. It even provides an idea solution for Greenhouse heating. Designed for rugged performance, the flow-through design efficiently moves air by pulling air from the back of the heater and discharges it out the front, easily heating a large space.
With high quality components suitable for both residential and commercial applications, it comes standard with a 3-position switch and a built-in thermostat. The integral fan delay continues to dissipate heat from the elements during the cool down period, maximizing the heat exchange in the room.
King’s exclusive dual Pic-A-Watt steel fin elements allow customers to select from a range of wattage options, tailoring the heater to an area’s specific heating requirements.
Built-in Thermostat: Single pole factory installed hydraulic capillary tube thermostat for heating control. Operating range 40° to 90° F.
Fan/Heat/Off Switch: 3-position switch provides heating and summer fan only operation.
Features:
• New Standard Color: Onyx Gray
• Original Pic-A-Watt Element
• Multiple Wattage Options, to Tailor to a Room’s Specific Heating Requirements
• Patented Smart Limit Protection
• Built-in Thermostat
• Selector Switch: Fan/Heat/Off
• Long Life Cast Iron Motor
• Fan Delay To Dissipate Heat
• Universal Wall/Ceiling Bracket Included
• Proudly Made in the USA with U.S. & Global Materials
Also Known as:
King Electric Heaters, Commercial Electric Heaters, King Commercial Electric Heater, Unit Heater, Model KBP, Compact Unit Heater, Garage Heaters.
