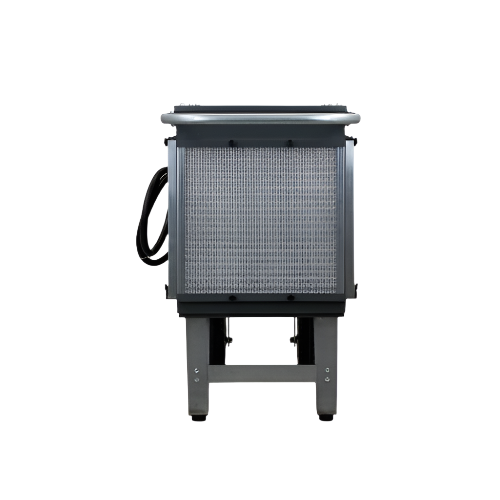

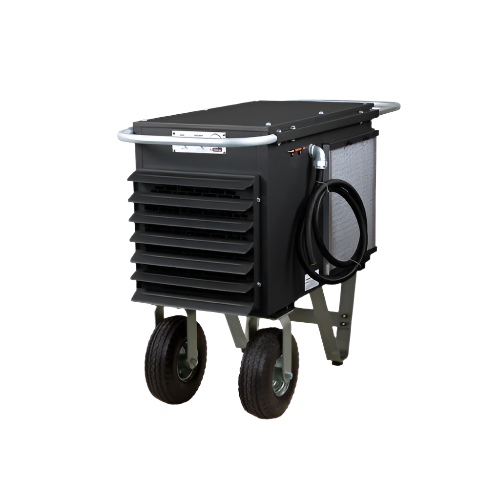

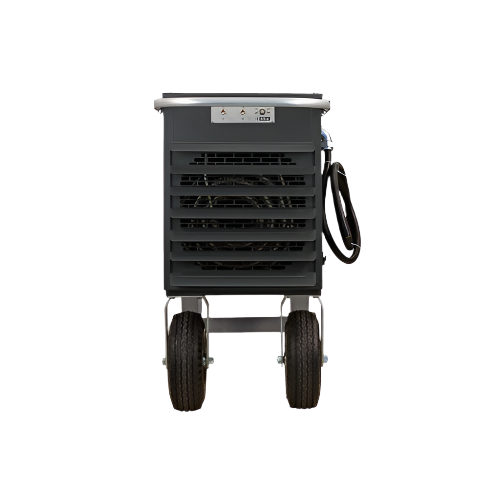

208V 1 Ph 10KW Industrial Wheeled Portable Unit Heater PCKW2010-1
[pdf] [/pdf]
About:
The PCKW industrial portable unit heater is built tough for demanding jobsites, providing ideal dry electric heat for “dry-out” applications without odor, flame, or carbon monoxide. Key features include high CFM, moderate temperature rise, front and back carry handles, heavy-duty pneumatic wheels for easy portability, washable intake filters, and a built-in thermostat with heat and fan-only settings for precise control.
Also Known as:
Commercial Electric Heaters, Portable Heaters, Portable Electric Heaters, Industrial Heaters, Industrial Portable Heaters, Wheeled Portable Heaters, Unit Heaters, Portable Unit Heater, Industrial Unit Heater.
Specifications:
| Volts | 208 |
| Phase | Single |
| Kilo Watts | 10 |
| BTUH | 34.1 |
| AMPS | 48.1 |
| Motor HP | 1/4 |
| CFM | 1000 |
| SOOW Cord Gauge | 6/3 |
| Weight | 142 lb |
| Product Dimension | 32.87 H x 19.46 W x 48.69 L inch |
| UPC | 093319330951 |
| Part Number | PCKW2010-1 |
Features:
• Simple Plug-In Design
• High Mass Steel Fin Heat Exchangers
• Large Capacity Dual-inlet Blower
• Handles High Static Pressure
• Moves Large Air Volumes (1500 CFM)
• Built-In Thermostat (40°-100°F)
• Washable Intake Air Filters
• Front & Back Carrying Handles
• 2 Heavy-Duty Pneumatic Wheels
• Heat Switch & Fan Only Switch
• Long Life 48 Frame Totally Enclosed Motor
• Patented Smart Limit Protection
• N.E.M.A. 12 Gasket Construction
• 6ft. SO Cord (plug not included – purchased separately)
• Durable 18-Gauge Steel Enclosure
• Non-Mercury Tip Over Switch
