208V 12.5KW 1PH Heavy Unit Heater w/ Single Pole Thermostat Online Sale

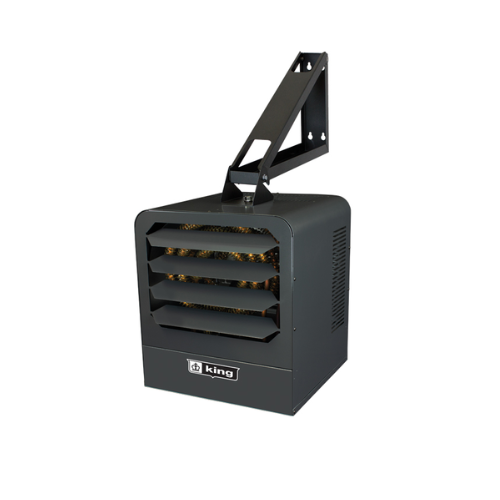

208V 12.5KW 1PH Heavy Unit Heater w/ Single Pole Thermostat

[pdf] [/pdf]

About :

• KB series unit heaters are designed for use as primary or supplemental heat sources in large or exposed areas to prevent freezing.
• Spiral finned steel elements and high CFM ensure even air distribution producing cooler element operation.

Also Known As :

King Electric Heaters, King Commercial Electric Heaters, Unit Heaters, King Unit Heaters, Model KB, Singlephase Heaters, Heavy Duty Unit Heaters.

Common Applications :

• Retail Spaces
• Garages
• Office Buildings
• Warehouses and Industrial Spaces
• Server Rooms
• Water treatment

Standards :

• N.E.C. standards.
• UL (Underwriters Laboratories) Standards : It means they have been tested and certified for safety and performance.
• Electrical Standards : Electric garage heaters should adhere to electrical safety standards
• Safety Features : Garage heaters should have safety features such as tip-over switches, overheat protection, and temperature controls to prevent accidents and fires.

Specifications :

• Voltage : 208V
• KW : 12.5
• Amps : 60.1
• Dimensions : 16.5″ H x 18″ D x 15″ W
• Phase : 1
• Motor HP : 50W
• BTUH : 42,663
• CFM : 935
• Temp. Rise : 42
• Air Throw : 28ft.
• Max. Mount Height : 11ft.
• UPC : 093319136188

Features :

• Adjustable Louvers to Direct Air
• Built-In Fan Delay to Dissipate Heat
• Built-In Thermostat
• High Mass Steel Fin Heat Exchanger
• Patented Smart Limit Protection®
• Permanent Lubricated Unit Bearing Motor
• Universal Wall/Ceiling Bracket Included
• Proudly Made in the USA with U.S. & Global Materials

Construction :

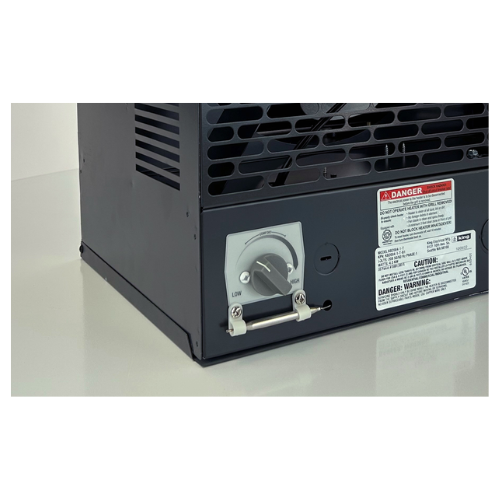

• Built-In Thermostat : Single pole factory installed hydraulic capillary tube thermostat for precision heating control.
• Electronic Control : Up, down temperature mode. Start/Stop. Standard on all heaters.
• Construction : All metal enclosure parts are made from 20 gauge electrogalvanized Steel with a rust inhibiting baked enamel finish.
• Rear Intake Screen : Heavy gauge steel screen protects against foreign objects making accidental contact with the rotating fan blade.

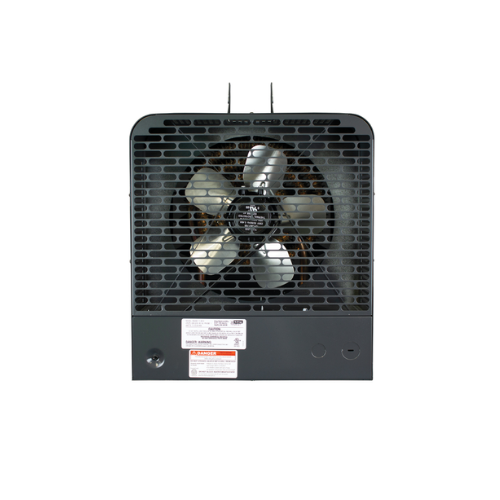

• Aluminum Fan Blade : Axial flow-type fan mounted directly to the motor shaft for maximum efficiency.
• Fusing : Internal circuit fusing is provided when the heater ampacity exceeds 48 Amps to comply with N.E.C. standards.
