208V 15KW 1PH Heavy Duty Unit Heater w/ SP Stat & Bracket
[pdf] [/pdf]
| Type | Unit Heater |
| Dimensions ( H x D x W ) |
16.5 x 18 x 15 inch |
| Temp. Rise | 45 |
| AMPS | 72.1 |
| CFM | 1050 |
| Volts | 208 |
| BTUH | 51,195 |
| Phase | 1 |
| Motor HP | 50W |
| Air Throw | 33ft. |
| Weight | 50 lbs |
| UPC | 093319136744 |
| Part Number | KB2015-1-T-B2 |
King KB2015-1-T-B2 Heavy Duty Unit Heater 208V 15KW 1PH
Description:
King’s KB series unit heaters are designed for use as primary or supplemental heat sources in large or exposed areas, including high-rise buildings, stores, warehouses, garages, water treatment and fire room vaults to prevent freezing.

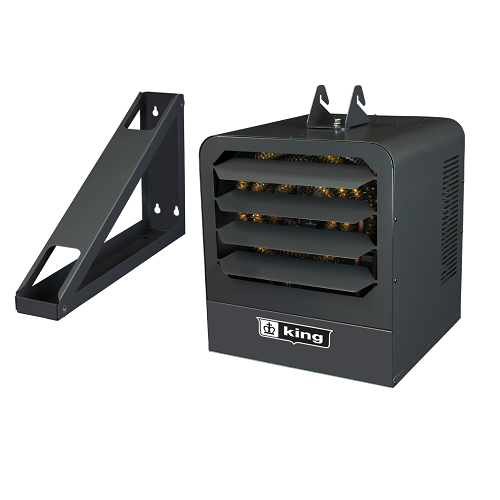

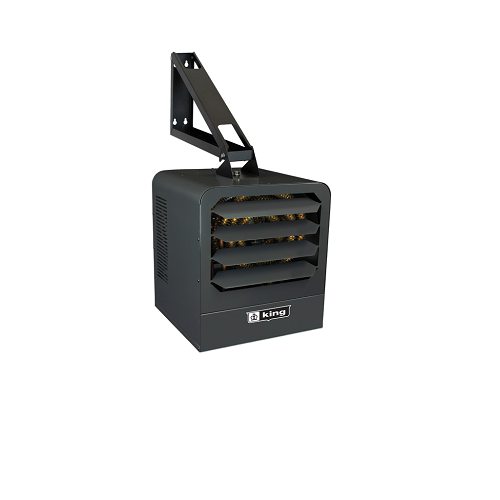

Spiral finned steel elements and high CFM ensure even air distribution producing cooler element operation, prolonging heater life. By combining the highest quality components, with a dynamically balanced fan blade and in-built thermostat, the KB unit heater will provide years of trouble-free service. Includes universal wall/ceiling bracket for simple installation.
Adjustable Outlet Louver : Louvers direct air up or down as needed for the heating application.
Rear Intake Screen : Heavy gauge steel screen protects against foreign objects making accidental contact with the rotating fan blade.
Features:
• Adjustable Louvers to Direct Air
• Built-In Fan Delay to Dissipate Heat
• Built-In Thermostat
• High Mass Steel Fin Heat Exchanger
• Patented Smart Limit Protection
• Permanent Lubricated Unit Bearing Motor
• Universal Wall/Ceiling Bracket Included
• Proudly Made in the USA with U.S. & Global Materials
Also Known as:
King Electric Heaters, Commercial Electric Heaters, King Commercial Electric Heater, Unit Heater, Model KB
