208V 3KW 1PH Unit Heater w/ Sngle Pole Stat & Bracket
[pdf] [/pdf]
| Type | Unit Heater |
| Dimensions ( H x D x W ) |
16.5 x 11 x 15 inch |
| KW | 3.3 |
| BTUH | 11,263 |
| AMPS | 15.9 |
| CFM | 520 |
| Volts | 208 |
| Phase | 1 |
| Motor HP | 16W** |
| Mount Height | 8 ft |
| Air Throw | 15 ft |
| Temperature Rise | 20 |
| Weight | 30.5 lbs |
| UPC | 093319132944 |
| Part Number | KB2003-1-T-B1 |
** 240V motor derated for 208V operation.

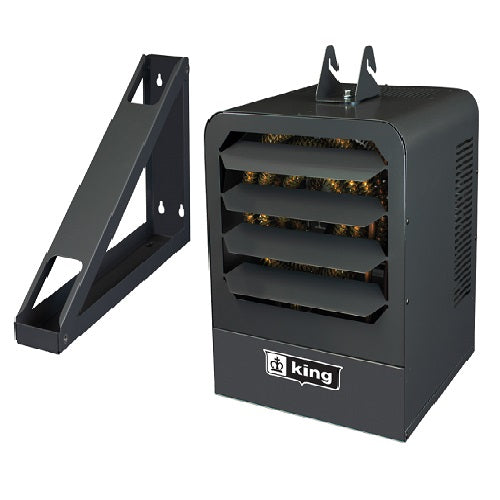

King KB2003-1-T-B1 208V Unit Heater 3KW with Thermostat and Bracket
Description:
King’s KB series unit heaters are designed for use as primary or supplemental heat sources in large or exposed areas, including high-rise buildings, stores, warehouses, garages, water treatment and fire room vaults to prevent freezing. Spiral finned steel elements and high CFM ensure even air distribution producing cooler element operation, prolonging heater life. By combining the highest quality components, with a dynamically balanced fan blade and in-built thermostat, the KB unit heater will provide years of trouble-free service. Includes universal wall/ceiling bracket for simple installation.
Construction : All exterior and interior metal enclosure parts are made from 20 gauge electrogalvanized Steel with a rust inhibiting baked enamel finish. Smooth rounded corners and protective edge trim give an attractive modern appearance
Adjustable Outlet Louver : Louvers direct air up or down as needed for the heating application.
Rear Intake Screen : Heavy gauge steel screen protects against foreign objects making accidental contact with the rotating fan blade.
Features:
• Adjustable Louvers to Direct Air
• Built-In Fan Delay to Dissipate Heat
• Built-In Thermostat
• High Mass Steel Fin Heat Exchanger
• Patented Smart Limit Protection
• Permanent Lubricated Unit Bearing Motor
• Universal Wall/Ceiling Bracket Included
• Proudly Made in the USA with U.S. & Global Materials
Also known as:
King Electric Heater, King Heavy Duty Heater, King Unit Heater, Unit Heater, Commercial Electric Heater, MODEL KB.
