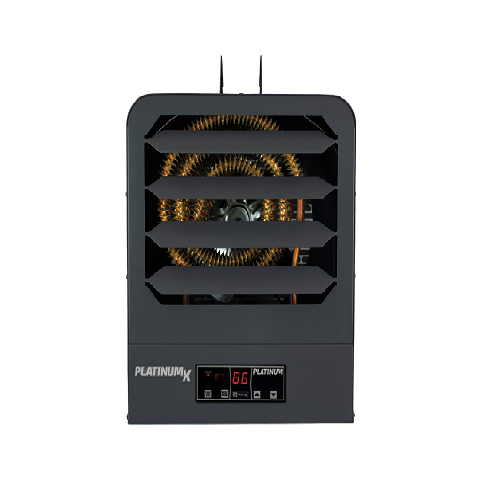

208V 4KW 1PH PlatinumX Heavy Duty Unit Heater w/ 24V Control
[pdf] [/pdf]
| Type | Unit Heater |
| Dimensions ( H x D x W ) |
16.5 x 11 x 15 inch |
| KW | 4 |
| Air Throw | 15 ft |
| AMPS | 19.2 |
| CFM | 520 |
| Volts | 208 |
| BTUH | 13,652 |
| Phase | 1 |
| Motor HP | 16W** |
| CFM | 520 |
| Temp. Rise | 24 |
| Mount Height | 8 ft |
| UPC | 093319331910 |
| Weight | 30.5 lbs |
| Part Number | KB2004-1-PLTMX |
** 240V motor derated for 208V operation.
King KB2004-1-PLTMX PlatinumX Unit Heaters 208V 4KW 1PH 24V Control
Description:
King’s KB PlatinumX series unit heaters are the most full-featured unit heaters on the market, with in-built electronic thermostat for accuracy and remote control for simple operation. Comes standard with a provision for adding an optional 24V thermostat for remote temperature control, making it compatible with Nest Thermostats. Includes integrated summer fan only and thermostat timer modes, the KB PlatinumX has you covered.
Designed for use as primary or supplemental heat sources in large or exposed areas, including high-rise buildings, stores, warehouses, garages, water treatment and fire room vaults to prevent freezing. Spiral finned steel elements and high CFM ensure even air distribution producing cooler element operation, prolonging heater life. By combining the highest quality components, with a dynamically balanced fan blade, the KB PlatinumX unit heater will provide years of trouble-free service. Includes universal wall/ceiling bracket for simple installation.
Construction: All exterior and interior metal enclosure parts are made from 20 gauge electrogalvanized Steel with a rust inhibiting baked enamel finish. Smooth rounded corners and protective edge trim give an attractive modern appearance.
Electronic Control: Up, down temperature mode. Start/Stop. Standard on all heaters.
Auto Memory Feature: Returns Unit To Last Settings After Power Outage
Features:
• Energy-Saving PlatinumX Electronic Temperature Controller
• Built-In Provision For Using Any 24V Remote Thermostat (Optional)
• Compatible with NEST / Any 24V Thermostat, including WIFI stats
• Remote Control Included with Wall Holder
• Summer Fan Only & Timer Modes
• Auto Memory Feature: Returns Unit To Last Settings After Power Outage
• Adjustable Louvers to Direct Air
• Built-In Fan Delay to Dissipate Heat
• High Mass Steel Fin Heat Exchanger
• Patented Smart Limit Protection
• Permanent Lubricated Unit Bearing Motor
• Universal Wall/Ceiling Bracket Included
• Proudly Made in the USA with U.S. & Global Materials
Also known as:
King Electric Heater, King Commercial Electric Heater, Commercial Electric Heater, Unit Heater, King Heavy duty Electric Heater, MODEL KB PlatinumX.
