208V 7.5W 1PH Heavy Duty Electronic Unit Heater w/ Bracket
[pdf] [/pdf]
| Type | Unit Heater |
| Dimensions ( H x D x W ) |
16.5 x 13.5 x 15 inch |
| Temp. Rise | 34 |
| AMPS | 36.1 |
| CFM | 690 |
| Volts | 208 |
| BTUH | 25,598 |
| Phase | 1 |
| Motor HP | 25W** |
| Air Throw | 20ft. |
| Weight | 45 lbs |
| UPC | 093319133262 |
| Part Number | KB2007-1-P |
** 240V motor derated for 208V operation.

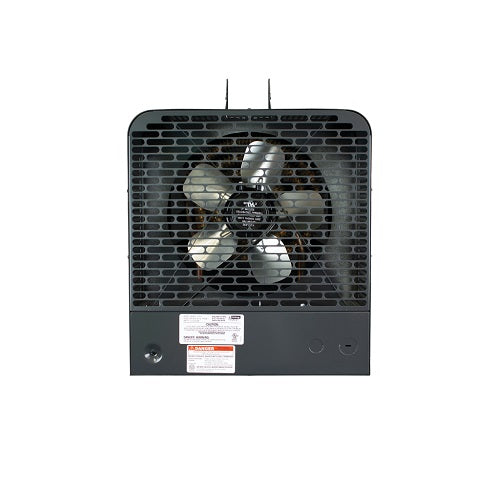

King KB2007-1-P Heavy Duty Unit Heater 208V 7.5W 1PH
Description:
King’s KB Platinum series unit heaters are the most full-featured unit heaters on the market, with in-built electronic thermostat for accuracy and remote control for simple operation. With integrated summer fan only and thermostat timer mode, the KB Platinum has you covered.
Designed for use as primary or supplemental heat sources in large or exposed areas, including high-rise buildings, stores, warehouses, garages, water treatment and fire room vaults to prevent freezing. Spiral finned steel elements and high CFM ensure even air distribution producing cooler element operation, prolonging heater life. By combining the highest quality components, with a dynamically balanced fan blade, the KB Platinum unit heater will provide years of trouble-free service. Includes universal wall/ceiling bracket for simple installation.
Auto Memory Feature: Returns Unit To Last Settings After Power Outage
Adjustable Outlet Louver: Louvers direct air up or down as needed for the heating application.
Features:
• Energy-Saving Electronic Temperature Controller
• Hand Held Remote & Wall Holder
• Timer & Summer Fan Only Modes
• Auto Memory Feature: Returns Unit To Last Settings After Power Outage
• Adjustable Louvers to Direct Air
• Built-In Fan Delay to Dissipate Heat
• High Mass Steel Fin Heat Exchanger
• Patented Smart Limit Protection
• Permanent Lubricated Unit Bearing Motor
• Universal Wall/Ceiling Bracket Included
• Proudly Made in the USA with U.S. & Global Materials
Also Known as:
King Electric Heaters, Commercial Electric Heaters, King Commercial Electric Heater, Unit Heater, Model KB
