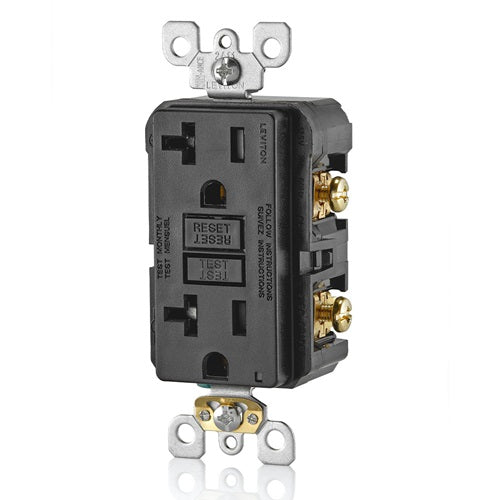

20A 125V Tamper Resistant SmartlockPro GFCI Receptacle Black GFTR2-E
[pdf] [/pdf]
About:
• Delivers continuous ground fault protection.
• Automatically self-test to ensure it can respond to ground fault.
• Status indicator light provides simple, intuitive feedback.
Also known as:
GFCI Receptacle, GFCI Outlet, Receptacle, Ground Fault Protection, SmartlockPro Technology, Outlet, Socket, Standard Duplex.
Specification:
• Type: Standard Duplex
• Amperage: 20A
• Voltage: 125V
• Body Material: Polycarbonate
• Face Material: Thermoplastic
• Wire: 3
• Color: Black
• UPC Code: 078477497326
Features:
• Provides continuous ground fault protection – detects and trips on actual ground fault even when self-test is being conducted
• On initial power-up, tests the GFCI within 3 seconds
• Auto-monitoring exceeds the UL requirement
• Auto adapts and shifts to more frequent testing if a potential problem is detected
• Status Indicator Light provides simple, intuitive feedback on power and protection status as well as an indication of line/load reversal
• Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
• Electronics are designed to minimize any false triggers
• Reduced depth makes it easier to install in any electrical box, even shallow ones
• Terminals allow for easy wiring options – back and side wires capable
• External back wire clamps provide a visual indication of proper wire seating
• Withstands high torque and resists wire pullout
• Standard brass self-grounding clip
• The trip threshold meets or exceeds UL requirements for tripping time
• Improved immunity to high-frequency noise reduces nuisance-tripping
• Advanced electronics design provides superior resistance to electrical surges and over-voltages
