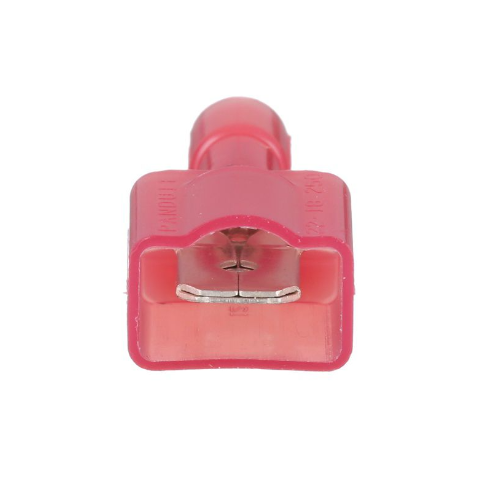

22-18 AWG Pan-Term Male Disconnect Nylon Insulated DNF18-250FIMB-D (Pack of 500)
[pdf] [/pdf]
About:
This product is a pack of 500 male disconnect terminals designed for wire sizes ranging from 22 to 18 AWG (American Wire Gauge). Being nylon insulated, they ensure a safe and secure electrical connection, minimizing the risk of short circuits. These terminals belong to the Pan-Term series.
Also Known As:
• Quick disconnect terminals
• Male spade terminals
• Slide-on connectors
• Faston connectors
• Push-on terminals
Common Applications:
• Automotive Systems: Used in car and truck electrical systems, connecting components like lights, radios, or alarms.
• Household Appliances: Found in machines and devices such as microwaves, washing machines, toasters, and refrigerators.
• Electronics Assemblies: Useful for projects or products that require easily detachable connections.
• Industrial Equipment: For machinery or control panels that might require regular maintenance or checks.
• Power Distribution: Connecting power to devices or machines in a way that allows for easy disconnection.
Standards Met:
UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Construction:
• Metallic Core: Typically, the core of such terminals is made of a conductive metal, like brass or tin-plated copper, ensuring a solid electrical connection.
• Nylon Insulation: An external layer that provides protection against short circuits, environmental factors, and accidental contact.
• Color-Coding: These terminals might be color-coded (often red for 22-18 AWG) to help users identify their compatibility quickly.
Features:
• Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
• Fully insulated design provides protection from electrical shorts
• Internal barrel serrations assure good wire contact and maximum tensile strength
• Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
• Coupler, male, and female parts sold separately
• UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C)
• UL and CSA rated up to 600 V per UL 310
Specification:
| Disconnect Type: | Male Tab Disconnect |
| Insulation Material: | Nylon |
| Insulation Type: | Fully Insulated |
| Maximum Copper Conductor Size (AWG): | #18 |
| Maximum Wire Size (AWG): | #18 |
| Minimum Wire Size (AWG): | #22 |
| Minimum Copper Conductor Size (AWG): | #22 |
| Wire Strip Length: | 1932-09-01 In. (7.1 mm) |
| Tab Size: | 0.250 x 0.032 In. (6.3 x 0.8 mm) |
| Maximum Voltage (V): | 600 |
| Base Material: | Brass |
| Finish/Coating: | Nickel-Plated |
| Color Code: | Red |
| Barrel Type: | Standard |
| Flammability Rating: | UL94-HB |
| Insulation Diameter: | 0.13 In. (3.4 mm) |
| Maximum Operating Temperature: | 105 °C (221 °F) |
| Sub Brand: | Pan-Term® |
| Maximum Metric Conductor Size (mm²): | 1 |
| Minimum Metric Conductor Size (mm²): | 0.5 |
| Maximum Wire Insulation Diameter: | 0.136 In. (3.5 mm) |
| Overall Length: | 0.91 In. (23.1 mm) |
| Overall Width: | 0.45 In. (11.4 mm) |
| Tongue Angle: | Straight |
| Seam Type: | Butted |
| Packaging Type: | Box |
| Product Type: | Disconnect |
| For Use With: | CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525) |
| Maximum Voltage (kV): | 0.6 |
| Part No: | DNF18-250FIMB-D |
