22-18 AWG Reel Smart Male Disconnect Nylon Insulated DNF18-250FIM-2K (Pack of 2000)
[pdf] [/pdf]
About:

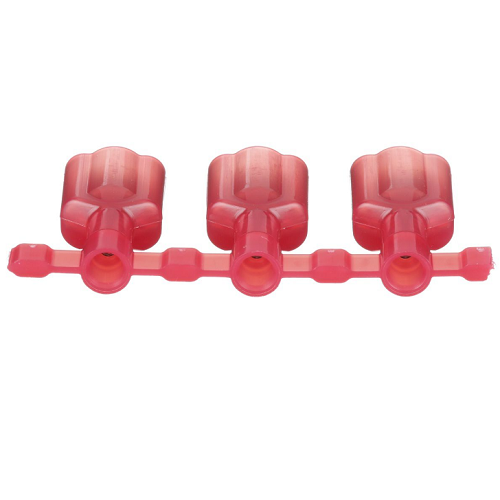

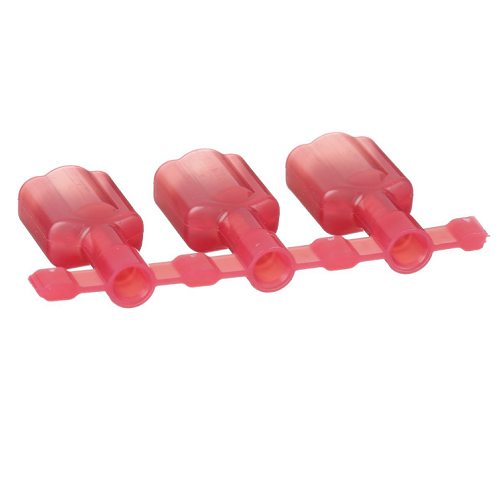

The DNF18-250FIM-2K is a Reel Smart Male Disconnect specifically designed for wire sizes ranging from 22-18 AWG (American Wire Gauge). With nylon insulation, it ensures both safety and durability. This product, packaged in a set of 2000, is ideal for tasks that require a large number of consistent and reliable disconnects.
Also Known As:
• Nylon-Insulated Quick Disconnects for 22-18 AWG
• Reel-Based Male Terminal Connectors for 22-18 AWG
• Slide-on Terminal Connectors (on a Reel) for 22-18 Wire Size
• Faston Terminal Connectors
Common Applications:
• Automotive Industry: Utilized for wiring within vehicle systems due to their quick-connect feature and reliable performance.
• Electronics Manufacturing: For making connections in devices like radios, computers, and other consumer electronics.
• Control Panels: In commercial and industrial control panels where secure, yet removable connections are often needed.
• Audio Equipment: Useful for making quick connections in amplifiers, speakers, and related audio gear.
• HVAC Systems: Used in connections for thermostats, motors, and other HVAC components.
Standards Met:
UL 310, CSA 22.2 No.153
Construction:
• Terminal: Typically crafted from conductive metals, often tin-plated copper, ensuring an optimal electrical connection.
• Insulation: Made of high-grade nylon which provides effective electrical insulation and offers a degree of resistance against environmental factors.
• Reel System: Ensures that the disconnects are organized and allows for consistent spacing, streamlining the application process.
Features:
• Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
• Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
• Fully insulated design provides protection from electrical shorts
• Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
• UL Flammability, maximum insulation temperature 221°F (105°C)
• per UL 310
Specification:
| Disconnect Type: | Male Tab Disconnect |
| Insulation Material: | Nylon |
| Insulation Type: | Fully Insulated |
| Maximum Copper Conductor Size (AWG): | #18 |
| Maximum Wire Size (AWG): | #18 |
| Minimum Wire Size (AWG): | #22 |
| Wire Strip Length: | 9/32 In. (7.1 mm) |
| Tab Size: | 0.250 x 0.032 In. (6.3 x 0.8 mm) |
| Maximum Voltage (V): | 600 |
| Base Material: | Brass |
| Finish/Coating: | Nickel-Plated |
| Color Code: | Red |
| Barrel Type: | Funnel |
| Flammability Rating: | UL94-HB |
| Maximum Operating Temperature: | 105 °C (221 °F) |
| Sub Brand: | Reel Smart™ |
| Maximum Metric Conductor Size (mm²): | 1 |
| Minimum Metric Conductor Size (mm²): | 0.5 |
| Maximum Wire Insulation Diameter: | 0.133 In. (3.38 mm) |
| Overall Height: | 0.295 In. (7.49 mm) |
| Overall Length: | 0.9 In. (22.86 mm) |
| Overall Width: | 0.42 In. (10.66 mm) |
| Tongue Angle: | Straight |
| Packaging Type: | Reel |
| Product Type: | Disconnect |
| For Use With: | Crimp press with CA9 (CD9-4B) or CA-800EZ (CD-800-4) applicator |
| Maximum Voltage (kV): | 0.6 |
| Part No: | DNF18-250FIM-2K |
