22-26 AWG Mini-Com Cat6 Left/Right 45 Angle Wire Cap TG Style UTP Module CJLRCAPRD-X 10 Pack
[pdf] [/pdf]
Also Known As:
• Cat6A Angled Wire Cap Module Pack
• Network Cable Management Caps
• UTP Cable Termination Caps
About:

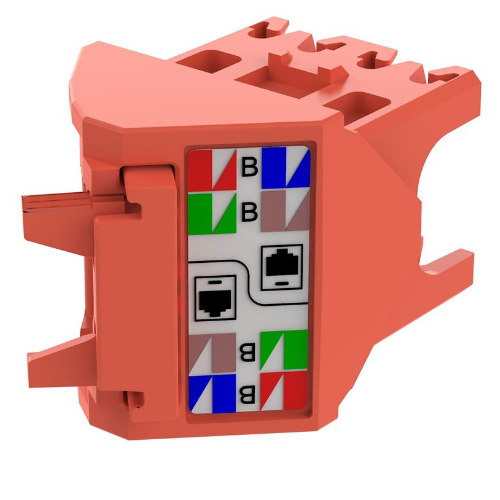

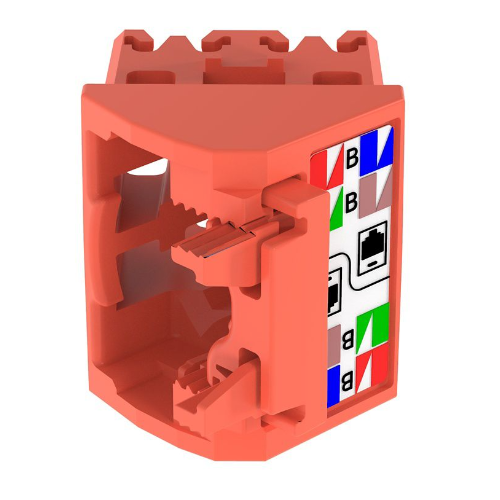

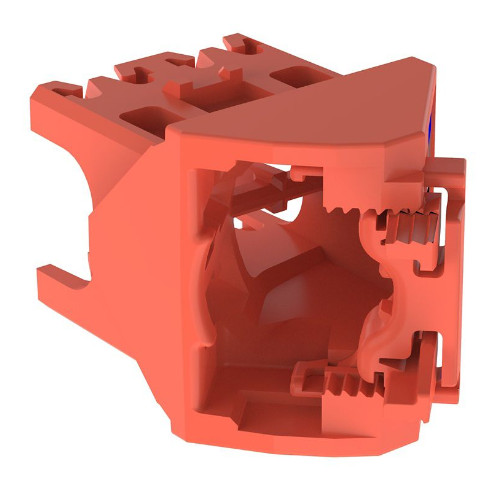

The 22-26 AWG Mini-Com Cat6A Left/Right 45 Angle Wire Cap TG Style UTP Module CJLRCAPRD-X is a package of wire caps specifically designed for managing and protecting the termination ends of Cat6A UTP cables. These caps can be oriented at a 45-degree angle either left or right, providing versatility in cable management, especially in tight and confined spaces.
Specification:
| Product Type | Jack Accessory |
| Performance Level | Category 5e |
| Connector Type | Jack Accessory |
| Termination Style | TG Style |
| Body Material | Polycarbonate |
| Module Type | Mini-Com® |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | Pan-Net® |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 75 |
| Maximum Storage Temperature (°F) | 167 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Color | Red |
| Overall Depth (In.) | 0.96 |
| Overall Height (In.) | 0.63 |
| Overall Length (In.) | 0.96 |
| Overall Width (In.) | 0.61 |
| Part No: |
CJLRCAPRD-X |
Common Applications:
• Data Centers: Ideal for managing multiple cable terminations efficiently, minimizing clutter, and ensuring optimal airflow.
• Office Networks: Helps organize cables at workstations and networking closets, enhancing aesthetics and accessibility.
• Telecommunications Rooms: Facilitates efficient cable management, reducing maintenance efforts and improving organization.
• Residential Networking: Assists in managing and protecting cable terminations in home networks, ensuring safety and performance.
Features:
• Versatile Orientation: The 45-degree angle design ensures effective cable management in various installation environments.
• Bulk Packaging: Available in a 100-pack, offering cost-effective options for large-scale applications.
• Enhanced Performance: Compatible with Cat6A UTP cables for high-speed data transmission.
• Tool-less Installation: The TG style ensures easy installation and maintenance, reducing setup time and effort.
• Safety and Protection: The caps protect the termination ends of the cables, reducing exposure to environmental factors and potential damages.
Standards:
• ANSI/TIA-568-C.2: If compliant, ensures performance, safety, and reliability in telecommunication cabling installations.
• ISO/IEC 11801: May meet international standards for general-purpose telecommunication cabling systems, depending on the manufacturer’s specifications.
Construction:
• Material: Made of durable plastics to withstand wear and tear while ensuring performance.
• Design: Angled to fit efficiently in confined spaces, enabling effective cable routing and management.
• Mechanical Characteristics: TG style for tool-less installation, crafted for quick and secure attachment and removal.
