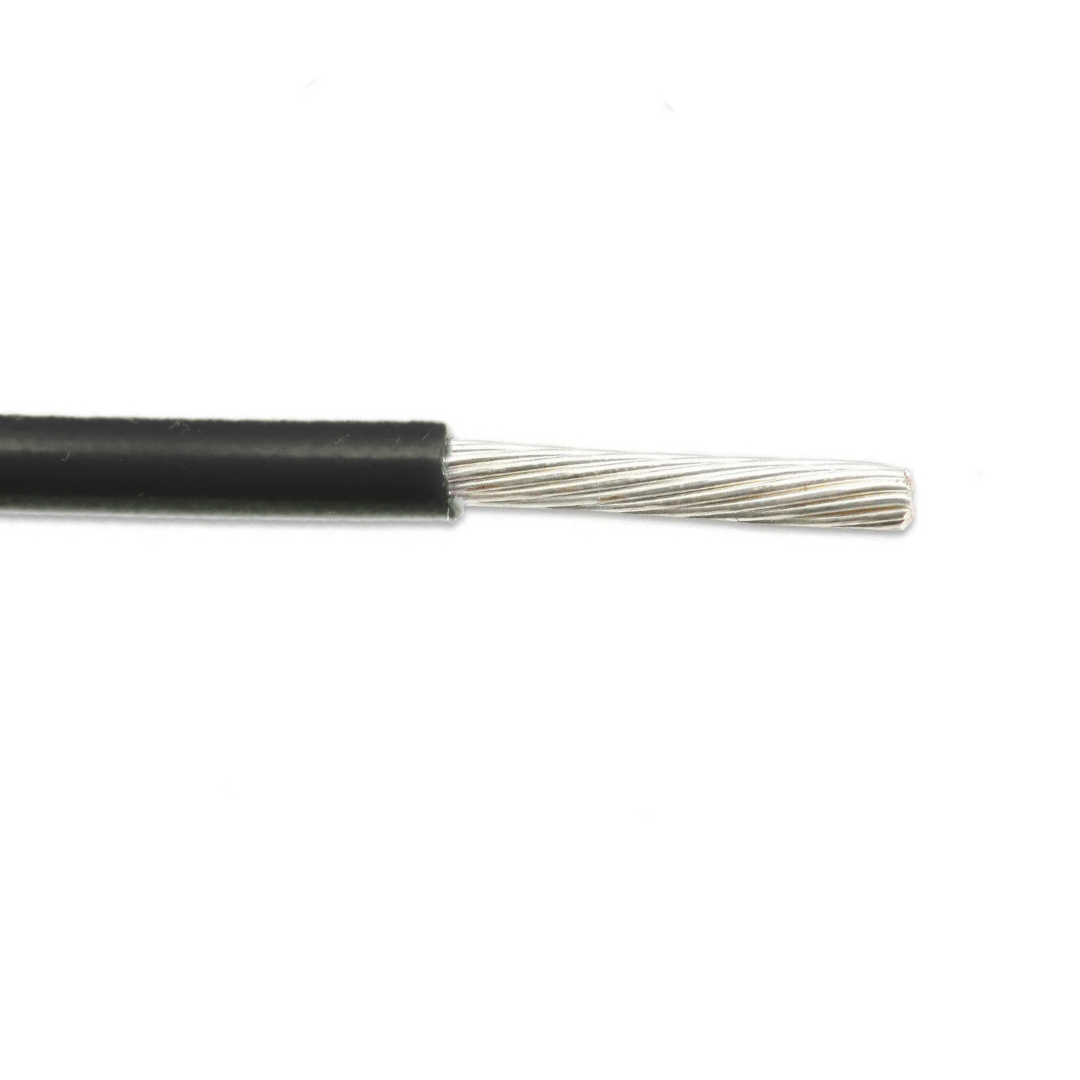

22 AWG 7/30 Stranded MIL-W-16878/6 Type ET Silver-Plated Copper Extruded PTFE 250V Hookup Wire
Allowable Ampacity for 22 AWG 7/30 Stranded MIL-W-16878/6 Type ET Silver-Plated Copper Extruded PTFE 250V Hookup Wire: 100 Amps
Application:
• MIL-W-16878/6 (Type ET) Wires Have Extruded PTFE Insulation (Thin Wall Thickness) For High-temperature Applications And Light Weight. PTFE Insulation Offers High Reliability With Excellent Thermal Stability And Chemical Resistance.
• For Medium-Wall (Type E) Versions Of These Wires, See M16878/4 (Page 27); For Heavy-Wall (Type EE) Versions, See M16878/5 (Previous Page).
Also Known As:
Military Wire, MIL-W-16878/6 Wire, Type ET Wire, PTFE Wire, Silver Plated Wire, Hookup Wire
Construction:
• Insulation: Extruded PTFE, Wall Thickness .006 (.15 mm).
• Conductor: Silver-Plated Copper.
• Colors: Color Coded To MIL-STD-104 (See Page 26).
• Options: Nickel-Plated Copper Conductor; Silver Or Nickel-Plated High-Strength Copper Alloy Conductor; Sodium Napthalene Etched Insulation For Bondability. Also Available To NEMA HP-3-ETX.
Performance:
• Voltage Rating: 250V.
• Temperature rating: Silver-Plated Conductor: -55 To 200° C;
Nickel-Plated Conductor: -55 To 260° C.
Specification:
• AWG Size: 22
• Stranding: 7/30
• Conductor Diameter: 0.030 Inches
• Insulation Diameter Min: 0.040 Inches
• Insulation Diameter Max: 0.044 Inches
• Weight: 2.80 Lbs/Ft
• Maximum Resistance: 15.9 Ω
• Thermax P/N: 22-MT-730
• M16878 P/N**: M16878/6 BFB-*
