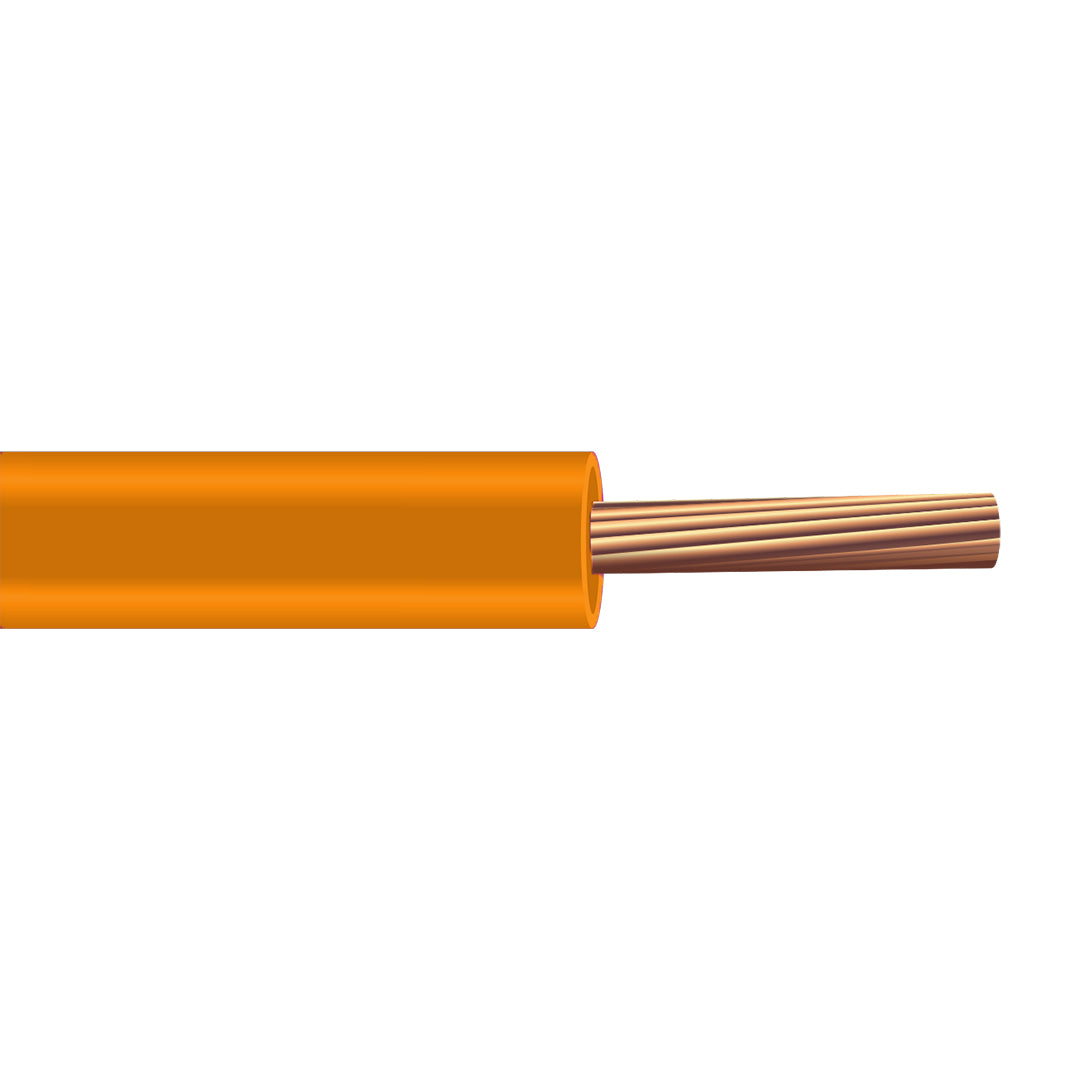

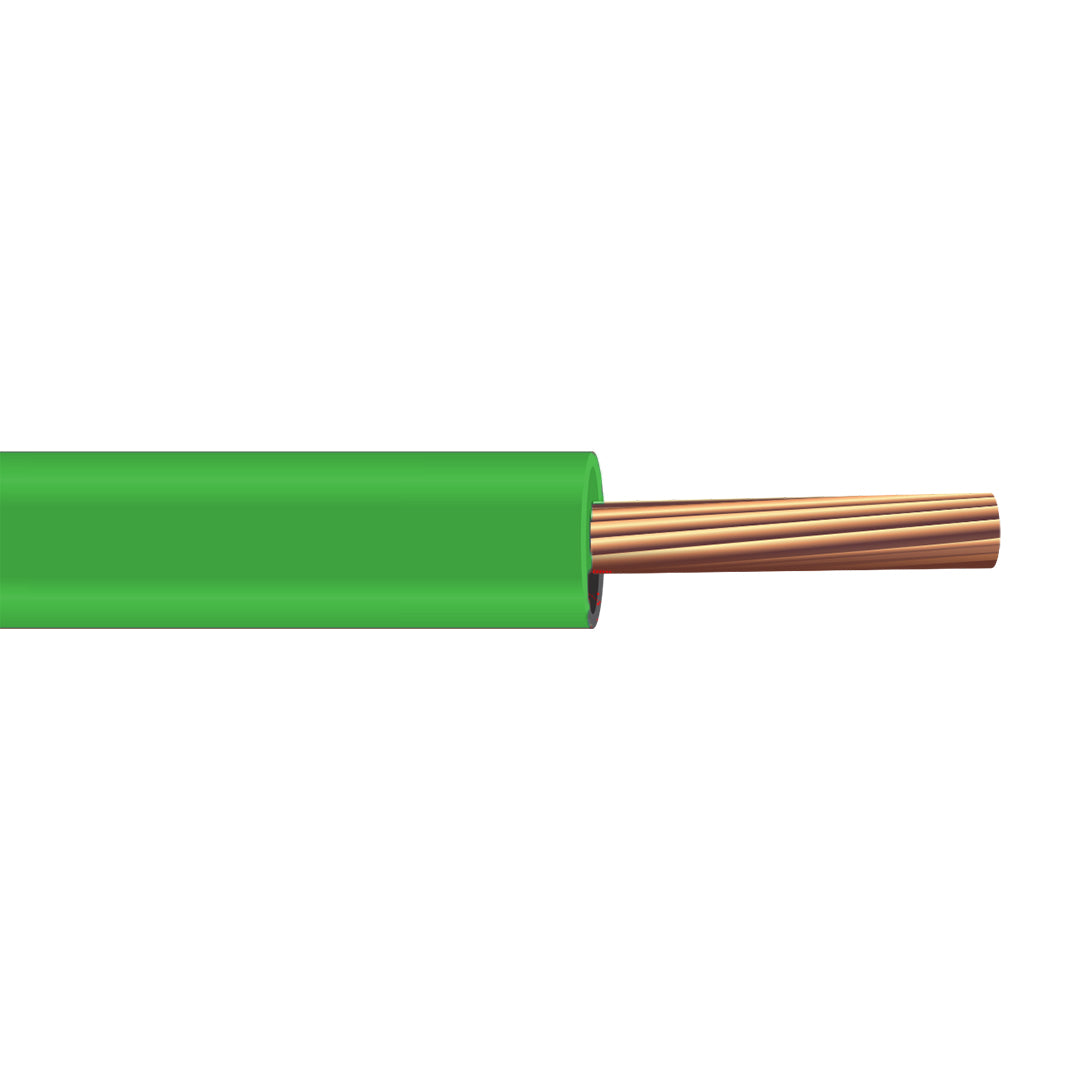

22 AWG 7 Strand Tinned Copper UL 1429 PVC Irradiated Hookup Wire
22 AWG 7 Strand Tinned Copper UL 1429 PVC Irradiated Hookup Wire
Application:
The lead hook-up wire is an electrical wire developed for use in motor interconnections, machine tools, control cabinets, and as transformer interconnecting wires. Internal wiring of appliances, electronic & test equipment, computers & business machines.
Also Known As:
22 AWG 7 Strand Hook Up Wire, 22 AWG 7 Strand Lead Wire Cable, 22 AWG 7 Strand Hook Cable, 22 AWG 7 Strand Lead Cable, 22 AWG 7 Strand Lead Wire, 22 AWG 7 Strand Stranded Hookup Wire, 22 AWG 7 Strand Lead Covered Wire, 22 AWG 7 Strand Electrode Lead Wires, 22 AWG 7 Strand Electrical Lead Wire, 22 AWG 7 Strand High Voltage Lead Wire, 22 AWG 7 Strand UL 1429 Wire, 22 AWG 7 Strand Irradiated Hookup Wire.
Standards:
Complies with MIL-Spec 16878/1
UL recognized AWM Style 1429 per UL 758 requirements
CSA AWM
UL 1429
Specifications:
Size: 22 AWG
Number of Strands: 7
Conductor Material: Tinned Copper
Insulation Material: Polyvinyl Chloride (PVC) (Irradiated)
Voltage: 150V
Temp: -55°C to 105°C (UL/CSA 80°C)
Conductor Diameter: 0.032 inches
Outside Diameter: 0.052 inches
Weight: 0.039 lbs per ft
