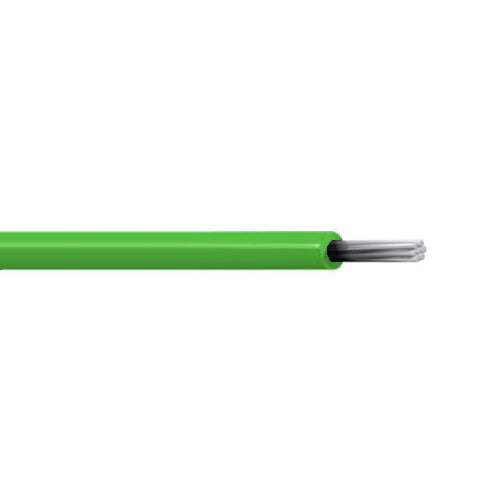

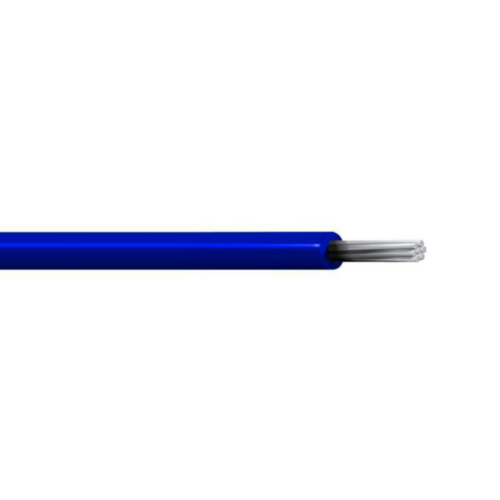

22 AWG 7 Strand Tinned Copper Unshielded UL 3266 XLPE 125C 300V Hook-Up Lead Wire
22 AWG 7 Strand Tinned Copper Unshielded UL 3266 XLPE 125C 300V Hook-Up Lead Wire
Allowable Ampacity for 22 AWG 7 Strand Tinned Copper Unshielded UL 3266 XLPE 125C 300V Hook-Up Lead Wire: 100 Amps
Also Known as:
Irradiated Cable, Hook-Up Cable, Irradiated XLPE Cable, UL 3266 Cable, Lead Cable
Description:
UL 3266 XLPE insulated hook-up wire is used for internal wiring. Rated for 125C and 300VAC.
Specifications:
Gauge Size: 22
Stranding: 7
No. of Conductors: 1
Armor Type: None
Conductor Metal: Tinned Copper
Conductor Shielding Type: Unshielded
Conductor Type: Stranded
Insulation Material: XLPE
Jacket Material: None
Overall Shielding Type: Unshielded
Specification(s): CSA AWM, CSA CL1252, UL 3266
Temperature: 125C
Voltage: 300V
IEWC Part: 3266/22T07-6
Manufacturer: Champlain Cable
Manufacturer Part: 15-07506-004
Vendor: Judd Wire
Part Number: H05790120102
Services:
• Striping
