24 AWG 100 Pair Gray Solid Bare Copper UTP CAT3 Cable
24 AWG 100 Pair Gray Solid Bare Copper UTP CAT3 Cable
DESCRIPTION :
Category-3, F/UTP, 100 Pair, Solid-Bare Copper. CMR.
FEATURES :
⦿ Suitable for Telephony Communication
⦿ 100 Pair – Cabled together with varying lays
⦿ 24AWG Solid Bare Copper Conductors
⦿ PE Tape, Rip Cord
⦿ ETL CM Verified, RoHS Compliant
Conductor Soft Annealed Solid Bare Copper Dia.
⦿ (±0.008mm) 0.483
⦿ Insulation HDPE
⦿ Average Thickness (mm) 0.18 Min.
⦿ Point Thickness (mm) 0.17
⦿ Insulation Dia. (±0.05mm) 0.86
⦿ Twisted Pair Dia. (±0.05mm) 1.70

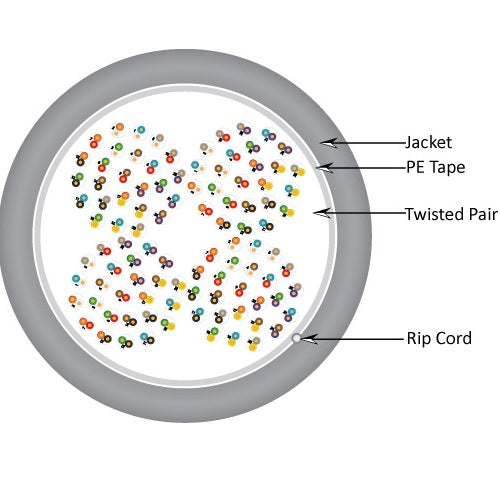

Cable Core 4×25 Twisted Pairs
⦿ Total Mylar Spiral (%) ≥125
Jacket PVC
⦿ Assembly Diameter (±1.0mm) 20.5
⦿ Min. Point Thickness (mm) 0.90
⦿ PET Tape Yes
⦿ Rip cord Yes
Electrical Characteristics
⦿ Impedance (±15Ω) 100
⦿ Max D-C Resistance of each Core (Ω/km) ≤97.8
⦿ Insulation Resistance (DC500V Charged 1Min) (ΩKm) ≥1500
⦿ Voltage Endurance (V/Min) DC 500
⦿ The average of Imbalance of D-C resistance upon cores ≤2.5%
Mechanical Characteristics
⦿ Test Object Jacket
⦿ Test Material PVC
⦿ Before Tensile Strength (Mpa) ≥13.8
⦿ Aging Elongation (%) ≥100
⦿ Aging Condition (ºCxhrs) 100×168
⦿ After Tensile Strength (Mpa) ≥85% of unaged
⦿ Aging Elongation (%) ≥50% of unaged
⦿ Cold Bend (-20±2ºCx4hrs) No Crack
Marking on Jacket
⦿ VERTICAL UTP 25PR 24AWG ETL CMR VERIFIED CAT3 TIA/EIA-568B.2 STANDARD RoHS XXXFT (SEQUENTIAL FOOT MARKERS ON JACKET)
