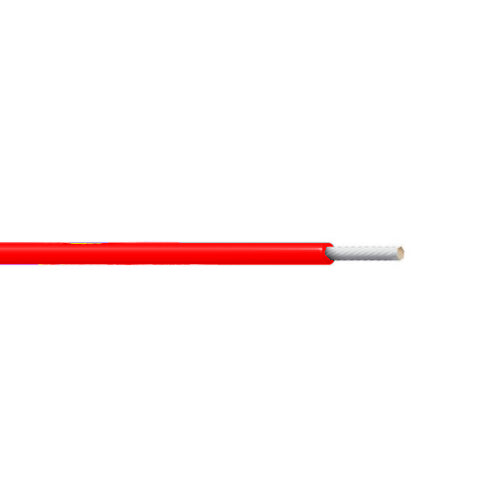

24 AWG 19 Strand Silver Plated Copper Unshielded UL 1180 PTFE 200C 300V Hook-Up Lead Wire
24 AWG 19 Strand Silver Plated Copper Unshielded UL 1180 PTFE 200C 300V Hook-Up Lead Wire
Allowable Ampacity for 24 AWG 19 Strand Silver Plated Copper Unshielded UL 1180 PTFE 200C 300V Hook-Up Lead Wire: 100 Amps
Also Known as:
UL & CSA Styles Cable, UL 1180 Cable, Hook-up Cable, Lead Cable, UL & CSA Styles UL 1180 Cable
Description:
UL 1180 PTFE insulated hook-up wire is used for internal wiring. Rated for 200C and 300VAC.
Specifications :
Gauge Size: 24
No. of Conductors: 1
Stranding: 19
Conductor Metal: Silver Plated Copper
Conductor Shielding Type: Unshielded
Conductor Type: Stranded
Insulation Material: PTFE
Jacket Material: None
Overall Shielding Type: Unshielded
Specification(s): CSA AWM, UL 1180
Temperature: 200C
Voltage: 300V
IEWC Part: 32044489
Manufacturer: Quirk Wire
Manufacturer Part: 2419XUC1180B2
