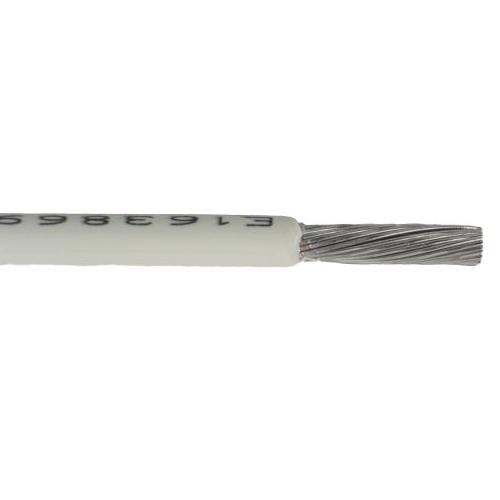

24 AWG 19 Strand Tinned Copper Unshielded UL 1333 FEP 150C 300V Hook-Up Lead Wire
24 AWG 19 Strand Tinned Copper Unshielded UL 1333 FEP 150C 300V Hook-Up Lead Wire
Allowable Ampacity for 24 AWG 19 Strand Tinned Copper Unshielded UL 1333 FEP 150C 300V Hook-Up Lead Wire: 100 Amps
Also Known as:
Hook-Up Cable, Lead Wire, UL 1333 Cable, High-Temperature Cable, Rubber Lead Wire, IEWC Cable
UL 1333 FEP insulated hook-up wire is gasoline resistant and is used for the internal wiring of electronic equipment and appliances. Rated for 150C, 300VAC, oil resistant 80C, and is gasoline resistant.
Construction:
Conductors:
Stranded Tinned Copper
Insulation:
Fluorinated ethylene polypropylene
Specifications :
Gauge Size: 24 AWG
No. of Conductors: 1
Stranding: 19
Conductor Metal: Tinned Copper
Conductor Type: Stranded
Insulation Material: FEP
Jacket Material: None
Overall Shielding Type: Unshielded
Specification(s): CSA AWM, UL 1333
Temperature: 150C
Voltage: 300V
IEWC Part #: 1333/24T19-0_UC, 32032369
Manufacturer: Harbour Industries
Manufacturer Part #: J4995-0, J4995-9
