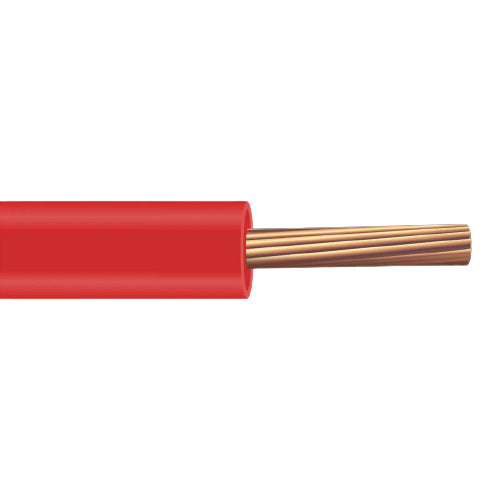

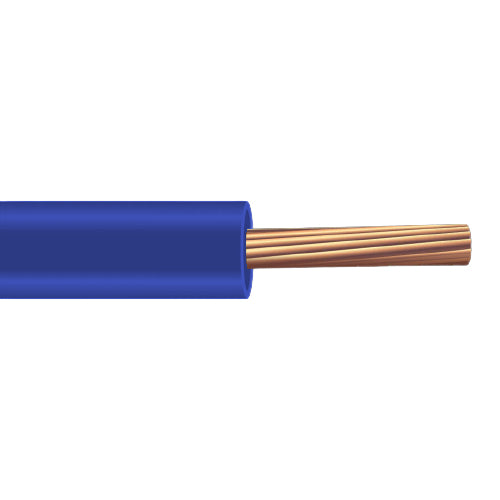

24 AWG 7 Stranded Unshielded M16878/1 Tinned Copper PVC 105C 600V Lead Wire
24 AWG 7 Stranded Unshielded M16878/1 Tinned Copper PVC 105C 600V Lead Wire
Allowable Ampacity for 24 AWG 7 Stranded Unshielded M16878/1 Tinned Copper PVC 105C 600V Lead Wire: 100 Amps
Also Known as:
Hook-up Cable, Lead Cable, M16878/1 Cable, Hook-up Wire, Lead Wire, Atlas Wire, Aerospace Cable, High Temperature Wire
Description:
M16878/1 lead wire products are used in general purpose, medium and high temperature wiring applications.
Specifications:
Gauge Size: 24
No of Conductors: 1
Stranding: 7
Brand: Atlas Wire
Armor Type: None
Conductor Metal: Tinned Copper
Conductor Shielding Type: Unshielded
Conductor Type: Stranded
Insulation Material: PVC
Jacket Material: NONE
Overall Shielding Type: Unshielded
Specification(s): MIL M16878/1
Temperature: 105C
Voltage: 600V
Brand: Atlas Wire
Black IEWC Part: M16878/1-BEB-0
White IEWC Part: M16878/1-BEB-9
Blue IEWC Part: M16878/1-BEB-6
Yellow IEWC Part: M16878/1-BEB-4
Red IEWC Part: M16878/1-BEB-2
Orange IEWC Part: M16878/1-BEB-3
Green IEWC Part: M16878/1-BEB-5
