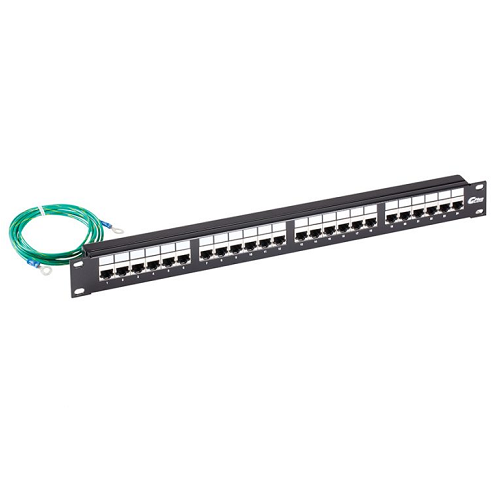

24 Port Rack Mount Patch Panel 568B Wired Gigabit Telco DCC2488/25V01
[pdf] [/pdf]
| Category | Category 5e |
| Number of Ports | 24 |
| Rack Units | 1 |
| Termination | 110 |
| Wiring | T568B |
|---|---|
| Color | Black |
| Part Number | DCC2488/25V01 |
DESCRIPTION:
High-speed data connections are essential for keeping pace with today’s business climate. OCC took this into consideration when developing patch panels that offered 1000BASE-T Gigabit Ethernet performance. Not only does the performance exceed industry standards, OCC’s Gigabit Ethernet Patch Panels are 100% component tested in the factory guaranteeing the customer worry-free installations.
APPLICATIONS:
• Voice4/16 Mbps Token Ring
• 100 Mbps TP-PMD
• 155/622 Mbps ATM
• Broadband video
• 10BASE-T Ethernet
• 100BASE-TX Fast Ethernet
• 1000BASE-T Gigabit Ethernet
FEATURES:
• Exceeds EIA/TIA 568-C.2 specifications
• ISO/IEC 60603-7 compliant
• Patented PC Board Technology
• All-steel construction for durability
• Each female Telco connector is split out to 6 RJ45 ports in TIA T568A or 568B configuration supporting 1000BASE-T applications
• Fast and easy installations
• Write on label fields
• Fully adjustable cable management support bar and bend radius requirements
• IKON compatible – 12 colors
• Use with OCC Telco Category 5e cable assemblies
• Compliant with Power over Ethernet (PoE+) requirements
• Insulation resistance – 500MΩ minimum
• Dielectric withstand – 1000 VAC RMS, AC 60 Hz or 1414 VDC P-P
• DC current rating – 1.5A per conductor at 20°C ambient de-rated to 0.75A at 60°C ambient
