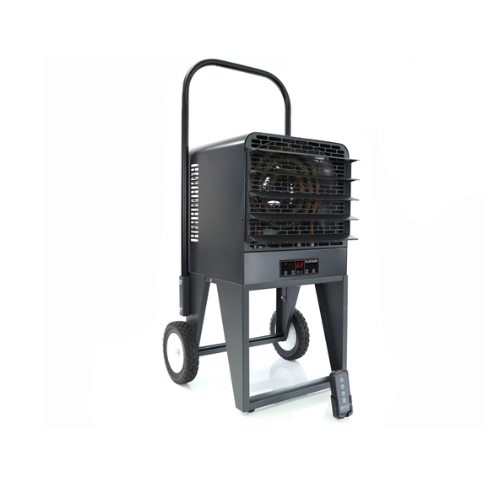

240/208V 10/7.5KW 1PH Portable Unit Heater w/ 25′ Cord Black
[pdf] [/pdf]
About :
• The PKB Platinum Electronic Portable Utility Heaters are the most full-featured utility heaters on the market, with in-built Platinum electronic thermostat.
• The high CFM and low temperature rise are also key features to make the PKB Platinum the best solution for temporary large capacity heating applications.
Also Known As :
King Electric Heaters, Commercial Electric Heaters, King Commercial Heaters, Industrial Portable Heater, Portable Unit Heater, Model PKB Platinum, Electronic Industrial Portable Unit Heater.
Specifications :
• Voltage : 240/208*V
• KW : 10/7.5 KW
• Amps : 41.7/36.1A
• Color : Black
• BTUH : 34.1/25.6
• CFM : 725
• Phase : 1 (Single)
• SO Cord Size : 6/3

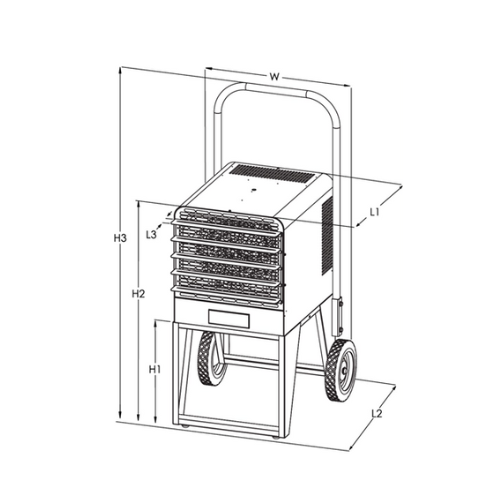

• Size : L1-13½”, L2-17″, L3-2.25″, W-19″, H1-14¼”, H2-30¼”, H3-41¼”
• UPC : 093319159101
* Dual rated heaters will draw 13% less amps and 25% less wattage when operated at 208V.
