240/208V 10KW Multiphase PlatinumX Unit Heater with 24V Control
[pdf] [/pdf]
| Type | Unit Heater |
| Dimensions ( H x D x W ) |
16.5 x 18 x 15 inch |
| KW | 10 |
| Temp. Rise | 40 |
| AMPS | 41.7/24* & 36.1/20.8* |
| CFM | 800 |
| Volts | 240/208* |
| BTUH | 34,130 |
| Phase | 1-3 |
| Motor HP | 25W |
| Air Throw | 29ft. |
| Mount Height | 11 ft. max. |
| Weight | 46.5 lbs |
| UPC | 093319332092 |
| Part Number | KB2410-3MP-PLTMX |
* Dual rated heaters will draw 13% less amps and 25% less wattage when operated at 208V.
King KB2410-3MP-PLTMX Heavy Duty Unit Heater 240/208V 10KW 1-3PH
Description:
King’s KB PlatinumX series unit heaters are the most full-featured unit heaters on the market, with in-built electronic thermostat for accuracy and remote control for simple operation. Comes standard with a provision for adding an optional 24V thermostat for remote temperature control, making it compatible with Nest Thermostats. Includes integrated summer fan only and thermostat timer modes, the KB PlatinumX has you covered.
Designed for use as primary or supplemental heat sources in large or exposed areas, including high-rise buildings, stores, warehouses, garages, water treatment and fire room vaults to prevent freezing.
Adjustable Outlet Louver : Louvers direct air up or down as needed for the heating application.

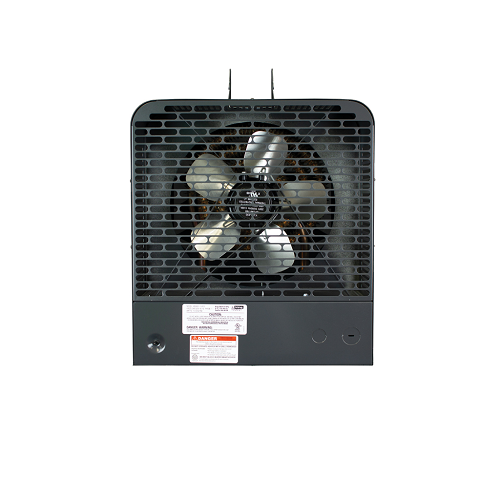

Rear Intake Screen : Heavy gauge steel screen protects against foreign objects making accidental contact with the rotating fan blade.
Features:
• Energy-Saving PlatinumX Electronic Temperature Controller
• Built-In Provision For Using Any 24V Remote Thermostat (Optional)
• Compatible with NEST / Any 24V Thermostat, including WIFI stats
• Remote Control Included with Wall Holder
• Summer Fan Only & Timer Modes
• Auto Memory Feature: Returns Unit To Last Settings After Power Outage
• Adjustable Louvers to Direct Air
• Built-In Fan Delay to Dissipate Heat
• High Mass Steel Fin Heat Exchanger
• Patented Smart Limit Protection
• Permanent Lubricated Unit Bearing Motor
• Universal Wall/Ceiling Bracket Included
• Proudly Made in the USA with U.S. & Global Materials
Also Known as:
King Electric Heaters, Commercial Electric Heaters, King Commercial Electric Heater, Unit Heater, Model KB PlatinumX, Heavy Duty Electronic Unit Heater.
