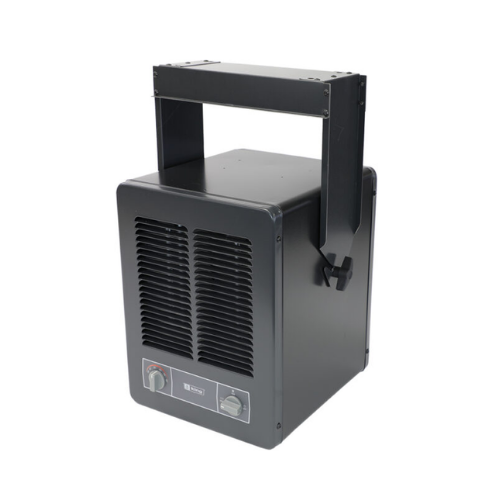

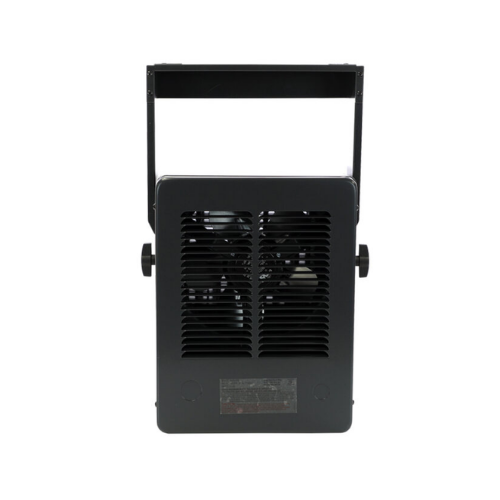

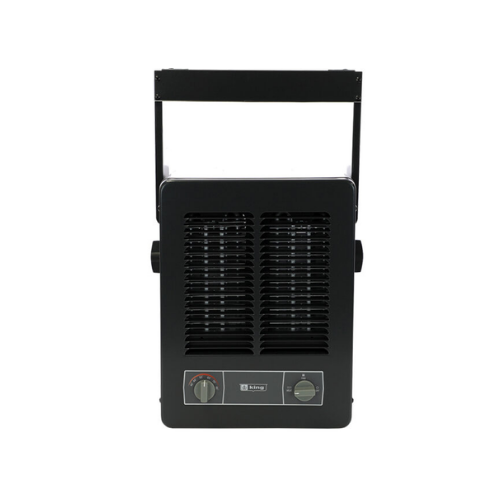

240/208V 5700W Single Phase Garage Compact Unit Heater Onyx Gray
[pdf] [/pdf]
About:
• The KBP is the industry standard for multi-wattage garage/shop heaters. It even provides an ideal solution for Greenhouse heating.
• Designed for rugged performance, the flow-through design efficiently moves air by pulling air from the back of the heater and discharging it out the front.
• With high quality components suitable for both residential and commercial applications, it comes standard with a 3-position switch (Heat/Fan/OFF-DISCONNECT)and a built-in thermostat.
• Pic-A-Watt steel fin elements allow customers to select from a range of wattage options.
Also Known As:
King Electric Heaters, King Residential Electric Heaters, Garage Heaters, King Garage Heaters, Model KBP, Unit Heaters, Single Phase Heaters, Multi Watt Heaters, King Unit Heaters.
Specifications:
• Voltage : 240V & 208*V
• Wattage : 5700-4750-3800-2850-1900-950
• Amps : 23.8-19.8-15.8-11.9-7.9-4
• Phase : Single
• Color : Onyx Gray
• BTUH : 19,454 – 3,242
• CFM : 270
• Mount Height : Max. 8ft.
• UPC : 093319151907
* Approved for 208V operation. Heater will draw 13% less Amps and 25% less wattage
