240/208V 5KW 1PH Ductable Industrial Portable Unit Heater
[pdf] [/pdf]
| Type | Portable Unit Heater |
| Volts | 240/208* |
| KW | 5/3.8 |
| AMPS | 20.8/18.0 |
| Size ( H x D x W ) | 16.5 x 13.5 x 15.1 inch |
| Duct Transition | 12 inch |
| BTUH | 17.1/12.8 |
| Phase | 1 |
| CFM | 600 |
| UPC | 093319327401 |
| Part Number | PKB2405-1-T-DT-FM |
* Dual rated heaters will draw 13% less amps and 25% less wattage when operated at 208V.
King PKB2405-1-T-DT-FM Portable Unit Heater 240/208V 5KW Single Phase
Description:
King’s PKB-DT ductable portable unit heater is constructed to hold up to the rigorous demands of jobsites or industrial facilities. These portable heaters can be ducted, to direct the heated air to required areas and are ideal for construction sites, warehouse and warehouse space heating, agriculture, events and military applications.
It is the best heat source to assist in dry-out applications where dry electric heat is preferred over propane or kerosene space heaters. In addition, electric heat has no odor, flame or carbon monoxide. The high CFM and low temperature rise are also key features to make the PKB-DT the best solution for temporary large capacity heating applications.
Features:
• Simple Plug-In Design
• 12″ Duct Transition Collar
• High Mass Steel Fin Heat Exchanger

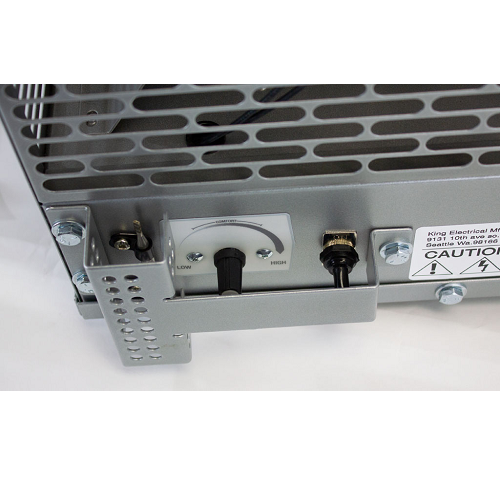

• Built-in Thermostat (40°-100°F)
• Top Spring-Loaded Retractable Carrying Handles
• 4 Heavy-Duty Rubber Feet
• Long Life Unit Bearing Motor
• Fan Only Switch
• Patented Smart Limit Protection
• 6ft. SO Cord (plug not included – purchased separately)
• Durable 20-Gauge Steel Enclosure
• Non-Mercury Tip Over Switch
• Proudly Made in the USA with U.S. & Global Materials
• Optional DT-TENT-TRANSITION-12 Accessory Available For Tented Enclosures & Restaurants
Also Known as:
King Electric Heaters, Commercial Electric Heaters, King Commercial Heaters, Model PKB-DT, Ducted Industrial Portable Unit Heater.
