240/208V 5KW 1PH Garage Heater w/ Thermostat and Bracket
[pdf] [/pdf]
| Type | Unit Heater |
| Max. Mount | 8 ft |
| Air Throw | 15 ft |
| Volts | 240/208* |
| KW | 5 |
| AMPS | 20.8/18* |
| Temperature Rise | 30 |
| BTUH | 17 |
| MOTOR HP | 9W |
| CFM | 520 |
| UPC | 093319222782 |
| Weight | 30.5 lbs |
| Part Number | GH2405TB |
* Dual rated heaters will draw 13% less amps and 25% less wattage when operated at 208V.
* GH2405TB: High Low switch & fan delay not available in 5kW unit

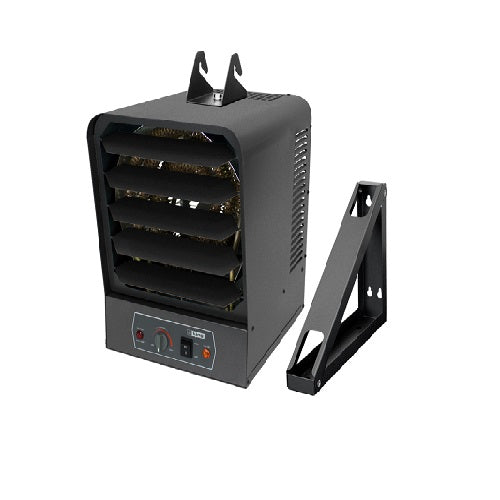

Garage Heater 5KW 240/208V with Thermostat and Bracket
Description:
The GH compact heavy duty unit heater is designed for use as primary or supplemental heat sources in large or exposed areas, including commercial stores, workshops, barns, storage shed and garages to prevent freezing. Spiral finned steel elements and high air volume (CFM) ensure efficient heat exchange producing cooler element operation, prolonging heater life.
By combining the highest quality components with a dynamically balanced fan blade, the GH unit heater will provide years of trouble-free service. Includes both a power on indicating light and a red caution light that comes on if the heater stops due to the over temperature limit tripping.
A universal wall/ceiling bracket provides for quick and simple installation. The built-in thermostat turns the heater on and off to maintain the desired room temperature or a remote wall thermostat can be used.
The heater is prewired to easily convert from the built-in thermostat to a wall mounted line voltage thermostat. The heater can also be controlled by purchasing a transformer relay to operate a remote 24V wall thermostat.
Features:
• Built-in Thermostat
• Adjustable Louvers to Direct Air
• Power On & Over-Temp Indicating Lights
• High Mass Steel Fin Heat Exchanger
• Patented Smart Limit Protection
• Permanent Lubricated Unit Bearing Motor
• Universal Wall/Ceiling Bracket Included
• Proudly Made in the USA with U.S. & Global Materials
Also known as:
King Electric Heater, Garage Heater, King Garage Heater, Residential Electric Heater,Heavy Duty Heater, Model GH, King MODEL GH.
