240V 12KW 1 Phase Electric Furnace ECM Motor
[pdf] [/pdf]
| Type | Electric Furnace |
| BTUH | 40,956 |
| Volts | 240 |
| Phase | 1 |
| KW | 12 |
| AMPS | 50 |
| Stage 1 | 5.75 kW |
| Stage 2 | 5.75 kW |
| Internal CB | 60 |
| Motor HP | 1/3HP |
| Size | 30 1/2 |
| Weight | 74 lbs |
| UPC | 093319221167 |
| Part Number | KFS2412-1-2S1-ECM |

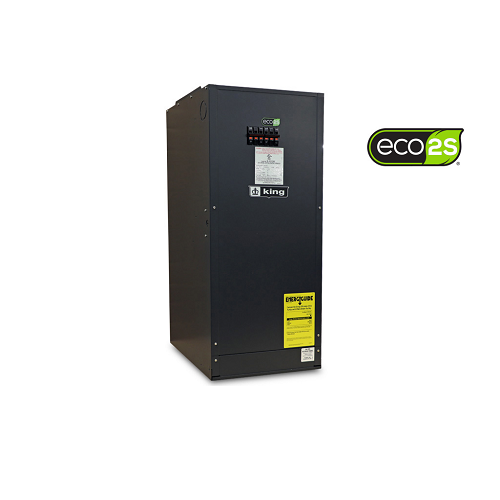

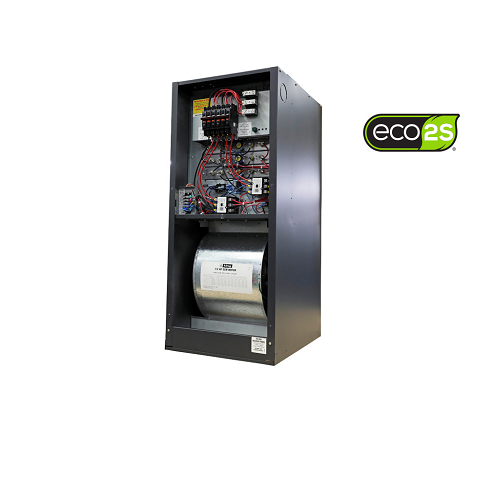

King KFS2412-1-2S1-ECM Electric Furnace 240V 12KW 1PH
Description:
ENERGY SAVINGS meets MAXIMUM COMFORT with the ECO2S Series ECM Motor 2 Stage Heating KF / KFS Furnaces. The ECO2S Series Model adds a state of the art electronically controlled motor and 2 heating stages for added comfort and Maximum Energy Savings.
Quiet operation and Multi-position mounting allows you to put it almost anywhere it will fit. Whether it is commercial, residential or process heating, this air furnace will do the job and give years of excellent maintenance-free service.
Transformer: Each furnace is equipped with a heavy duty low voltage (40 VA) transformer for the thermostat control circuit.
Time Delay Sequencer: Actuates heating element banks to minimize electrical surges in compliance with E.E.I. and N.E.M.A. standards.
Heating Elements: Quick heating, long life Ni-Chrome elements are sized to provide proper watt density for maximum heat dissipation.
Features:
• Energy Efficient ECM Motor
• 2-Stage Comfort Heating = 15% Savings (*Where Applicable)
• Heavy Duty Open Coil Element
• Sequenced Heating Elements
• Down Flow or Up Flow
• 16” x 20” x 1” Inlet Filter
• Welded Cabinet Design
• Horizontal or Vertical Mount
• Mobile Home Approved
• Breaker Disconnects
• Baked Enamel Finish
• Extended Life
• Standard 24 Volt Control
• Fan Only Relay
• Quiet Sound Insulated Cabinet
• Dual Inlet Industrial Blower
• Proudly Made in the USA with U.S. & Global Materials
Also Known as:
King Electric Heaters, Furnace, King Furnace, Model KF / KFS ECO2S
