24W 120~277V 3CCT Selectable Led Bollard Light
[pdf] [/pdf]
| LED Driver |
UL Driver |
| Input power |
24W |
| Lumens output |
3120LM |
| Efficiency |
130LM/W
|
| CRI |
＞80 |
| Color Temperature |
3000K/4000K/5000K
|
| Input voltage |
120-277V/AC
|
| Light distribution type |
Type V |
| Working temperature |
-40℃+40℃ |
| Junction temperature |
＜75℃ |
| IP Rating |
IP64 |

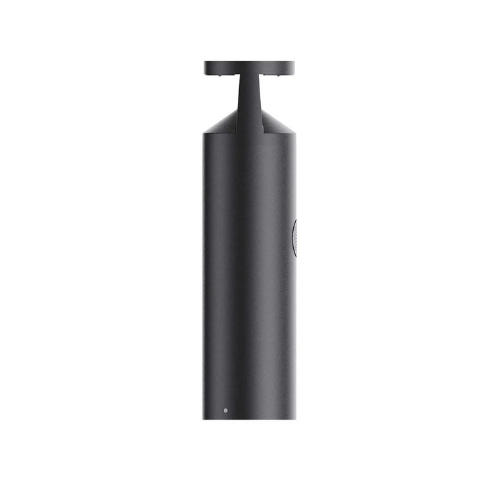

24W 120~277V 3CCT Selectable Led Bollard Light
Features:
• Efficacy higher than 130lm/W with zero uplights while consuming 24W
• Round appearance for good decorative effect, with a 3.5ft height
• Dark bronze polyester powder-coat finish.
• 120 degrees illumination with 80 CRI.
• 1-10V dimming and projected over 50,000 hrs life span.
• The operating temperature is -4℃ to 40℃.
• Optional emergency function for emergency needs.
• Robust ground cage pre-buried installation.
• UL/cUL wet location listed and DLC qualified.
Applications:
• Suitable for building entryways, walking paths, pedestrian plazas, and any other location requiring a low-mounting-height light source.
