25′ 26 AWG Mold Injection CAT6A Patch Cord
[pdf] [/pdf]
25′ 26 AWG Mold Injection CAT6A Patch Cord
DESCRIPTION :
Category-6A Shielded, 26AWG Stranded BC, Mold-Injected Patch Cord, PVC Jacket. Ideal for high-speed 10G networks
FEATURES :
⦿ Category-6A Shielded Patch Cord with Boot & Protector
⦿ 550MHz High-Performance Patch Cord
⦿ CM Rated PVC Jacket
⦿ 26AWG 4 pair
⦿ Stranded Bare Copper Conductors
⦿ Exceeds ANSI EIA/TIA 568 B.2-10
⦿ 8P8C Gold Plated Pins 50U”
⦿ 50 Micron Gold RJ45s w/Boots on Each End
⦿ 568B Wiring Color Code
⦿ ETL Listed, RoHS Compliant
⦿ 10 per bag
Conductor
⦿ Size 26AWG
⦿ Construction 7/0.16±0.002mm
Insulation
⦿ Material Foam-Skin PE
⦿ Diameter 1.04±0.02mm
Jacket
⦿ Material 75A PVC UL94-V2
⦿ Outer Diameter 6.5±0.2mm
Connectors
⦿ RJ45 8P/8C
⦿ Contacts/Pins Gold Plated
Electrical Test
⦿ 100% open short & miss wire test
⦿ Insulation resistance: DC 300V 10M ohm
⦿ Impedance: 100±15ohms

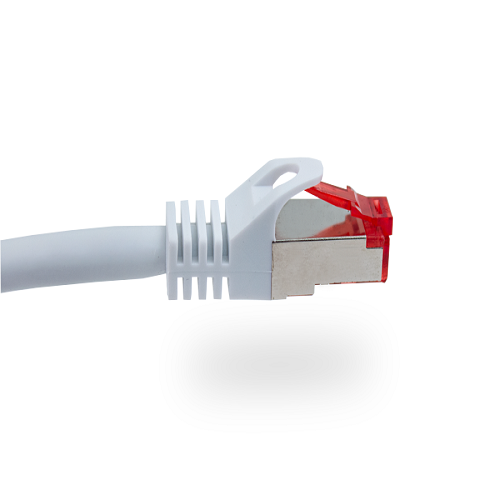

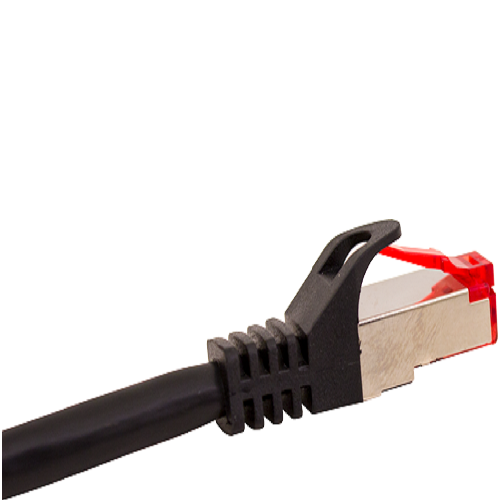

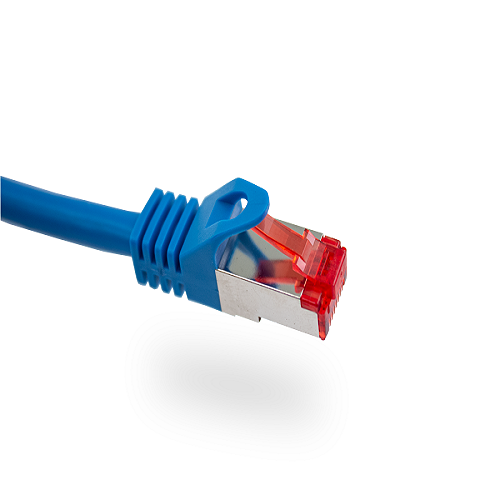

Available Colors
⦿ Yellow, Black, Red, Blue, White
