25 Pair 24 AWG Cat3 CMP Plenum PVC Jacket UTP Solid Copper Cable Gray 18-499-36
[pdf] [/pdf]
About :
The ideal choice for LAN transmission with specified bandwidth up to 16 MHz. These cables are used for voice and data communications and can handle application bandwidths up to 16 MHz. Other uses for these cables include indoor use on customer premises for the interconnection of telephone key systems, PBX and intercom systems. Product is offered for plenum (CMP) applications.
Also Known as :
25 Pair 24 AWG Cable, UTP Cable, CAT3 Cable, 25 Pair Cat3 Cable, Riser Cable, Cat3 Plenum Cable, PVC Jacket Cable, CMP Cable, Unshielded Twister Pair (UTP) Cable.
Performance Compliance:
• UL 444
• CSA C22.2 No. 214-08
• UL 1666
• NFPA 262
• ANSI/TIA-568.2-D
• ANSI/ICEA S-90-661-2012
• Article 800, NEC (NFPA 70)
• RoHS-compliant/RoHS 2-compliant
Applications:
• 4 Mbps token ring (IEEE 802.5)
• Analog voice
• 10 Mbps 10BASE-T Ethernet (IEEE 802.3)
• Telecommunications closet wiring
Benefits:
• Easier and less time-consuming installations, no kinking of outer jacket
• Improves backbone sub-system identification, reduces labor and mistakes
Features:
• CMR and CMP constructions use extremely flexible, FR-PVC jacket
• Jacket color options
Specifications :
| Pair Count | 25 |
| Gauge | 24 AWG |
| Category | Cat 3 |
| Flammability Rating |
Plenum |
| Conductor | Solid annealed copper |
| Insulation | Thermoplastic |
| Jacket | Flame retardant, low smoke PVC |
| Nominal Diameter | 0.47 inch / 11.9 mm |
| Jacket Color | Gray |
| Package | Cut to Length |
| Part Number | 18-499-36 |

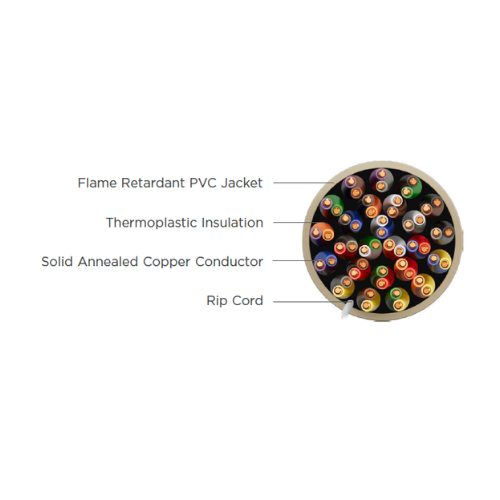

*Image is an illustration purpose, may not reflect the color of the exact product.
