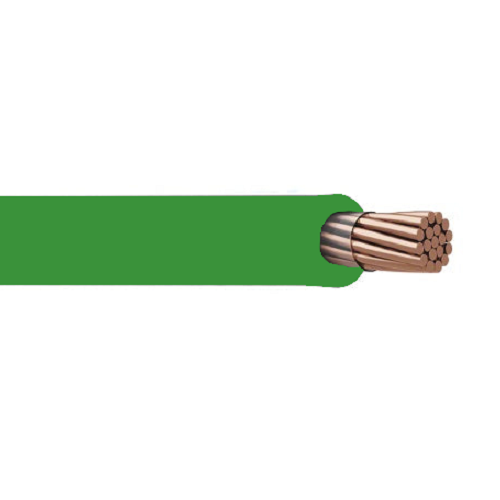

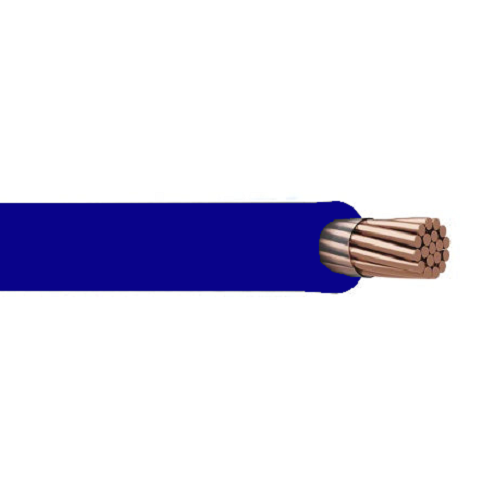

250 MCM XHHW-2 Copper Building Wire
Applications:
Copper SIMpull XHHW-2/RW90 conductors are primarily used in conduit, cable tray or other recognized raceways for services, feeders, and branch circuit wiring, as specified in the National Electrical Code. SIMpull XHHW-2/ RW90 copper conductors may be used in wet or dry locations at temperatures not to exceed 90°C. Voltage rating for XHHW-2 conductors is 600 volts or 1000 volts for all sizes. Suitable for use in Health Care Facilities per Section 517.160 of the National Electrical Code where a dielectric constant of less than 3.5 maybe specified. This cable is designed to be installed without the application of pulling lubricant. RW90 is for open wiring and use in raceways (except cable troughs and ventilated flexible cableways) in dry or wet locations as per Canadian Electrical Code. For open wiring exposed to the weather. Conductor sizes 8 AWG and larger are rated 600 or 1000 Volt Single Conductor Copper, Cross Linked Polyethylene (XLPE) with SIMpull technology for easier pulling.
Also Known As:
250 MCM Wire, 250 KCMIL Wire, 250 XHHW Cable 37 Strand, 250 KCMIL CU Cable, 250 MCM Copper Cable, 250 KCMIL CU Cable, 250 XHHW-2 Copper Building Wire, 250 XHHW Cable, 250 XHHW Service Wire, 250 XHHW-2 Copper Wire, 250 CU Building Wire, 250 Black Stranded CU SIMpull XHHW-2 Wire, Southwire 11304305, Southwire Wire, 250 MCM XHHW Building Wire, XHHW Stranded Building Wire.
Construction:
Conductor:
Class B compressed stranded bare copper per ASTM B3 and ASTM B8
Insulation:
Cross Linked Polyethylene (XLPE) with SIMpull Technology. Silicone-Free, Abrasion, High-Heat, Moisture Resistant.
Features:
- SIS- 8 AWG
- Sunlight resistant
- -40°C Cold bend
- FT1
- Gasoline and Oil Resistant II
- CT Rated- 1/0 AWG and larger
- FT4- 350 kcmil and larger
- RoHS/REACH Compliant
Standards:
- ASTM B3 Soft or Annealed Copper Wire
- ASTM B8 Concentric-Lay-Stranded Copper Conductors
- ASTM B787 19 Wire Combination Unilay-Stranded Copper Conductors
- UL 44 Thermoset-Insulated Wires and Cables
- UL 1685 Vertical-Tray Fire Propagation and Smoke Release Test (1/0 and Larger)
- CSA C22.2 No. 38 Thermoset-insulated wires and cables
- ICEA S-95-658 (NEMA WC70) Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
- IEEE 1202/FT4 Flame Test (70,000 BTU/hr) 350kcmil and Larger
- Made in America: Compliant with both Buy American and Buy America Act (BAA) requirements per 49 U.S.C. § 5323(j) and the Federal Transit Administration Buy America requirements per 49 C.F.R. part 661
- Federal Specification A-A-59544
- NMX-J-451-ANCE Thermoset insulated wires and cables
- NOM-063-SCFI Electrical Products – Conductors – Safety Requirements
Specifications:
- Size : 250 MCM
- Number of Strands: 37
- Diameter Over Conductor ( Inch ): 0.558
- Insulation Thickness (mils): 65
- Aprox. OD (inches): 0.700
- Copper Weight ( lbs/mft ): 771 lbs
- Net Weight ( lbs/mft ): 838 lbs
- Min Bending Radius: 2.8 inch
- Max Pull Tension: 2000 lbs
- Allowable Ampacity At 60°C: 215 Amp
- Allowable Ampacity At 75°C: 255 Amp
- Allowable Ampacity At 90°C: 290 Amp
- Southwire Part ( SimPull): 11304305
|
Compatible with Manufacturer |
|
|
Advanced Digital : |
20250CT |
|
Omni Cable : |
Black : M7250ST-01 |
|
Southwire : |
Black : 11304305 |
|
HWC : |
HW00225001 |
|
Service Wire Co : |
XH250BK |
