250 MCM XHHW-2 Aluminum Cable 600V
[pdf] [/pdf]
250 MCM XHHW-2 Aluminum Cable 600V
Allowable Ampacity for 250 MCM XHHW-2 Aluminum Cable 600V at 75°C: 205 Amps
Allowable Ampacity for 250 MCM XHHW-2 Aluminum Cable 600V at 90°C: 230 Amps
Applications:
These electrical wires, also known as XHHW-2 cables, are primarily used for power distribution, in both wet and dry places, with ambient temperatures not exceeding 90°C. Voltage rating for this electrical wire, XHHW-2 cable, is 600V.
Due to high 250 mcm aluminum wire ampacity, here are the applications:
- Service entrance
- Feeder circuits
- Industrial equipment
- Conduit systems
- Busbars and power distribution
- Renewable energy installations
- Backup generators
Also Known As:
250 mcm aluminum wire, 250 kcmil aluminum wire, 250 xhhw-2 cable, 250 hxxw-2 cable, 250 rw90 cable, 250 rw90 wire, 250 type se cable style u type xhhw-2, 250 xhhw-2, 250 southwire xhhw-2, 250 xhhw-2 insulation, 250 aluminum wire, xhhw-2 aluminum wire, 250 mcm aluminum
Standards:
- XHHW-2 meet or exceed the following standards:
- UL standard 44
- Requirements of the National Electrical Code
- ASTM standards B 800, B 801
- Federal Specification J–C-30B
- Sunlight resistant
Construction
Conductors:
XHHW-2 conductor is a soft drawn bare 8000 series aluminum, with Class B stranding per ASTM. Stranded conductors reduce power loss and are also easier to use in applications where flexibility is vital.
Insulation:
XHHW-2 has abrasion, heat, and moisture resistant cross-linked polyethylene insulation. Cross linking a polyethylene helps to achieve an excellent strength that makes the material suitable for covering this cable used in harsh conditions.
Specifications:
- Size AWG: 250 MCM
- Stranding: 35
- Conductor Diameter Inches: 0.520
- Insulation Thickness Inches: 0.065
- O.D. Inches: 0.650
- New Weight lb/1000FT: 288 lbs
- Ampacity at 75°C: 205 Amps
- Ampacity at 90°C: 230 Amps
|
Compatible with Manufacturer |
|
| Houston item : |
Black : HW002A25001 Black : 250-01XHHWBLACKAL |
| Priority Wire & Cable : | Black : 250-01XHHW-2-ALUM |
| Omni Cable item : |

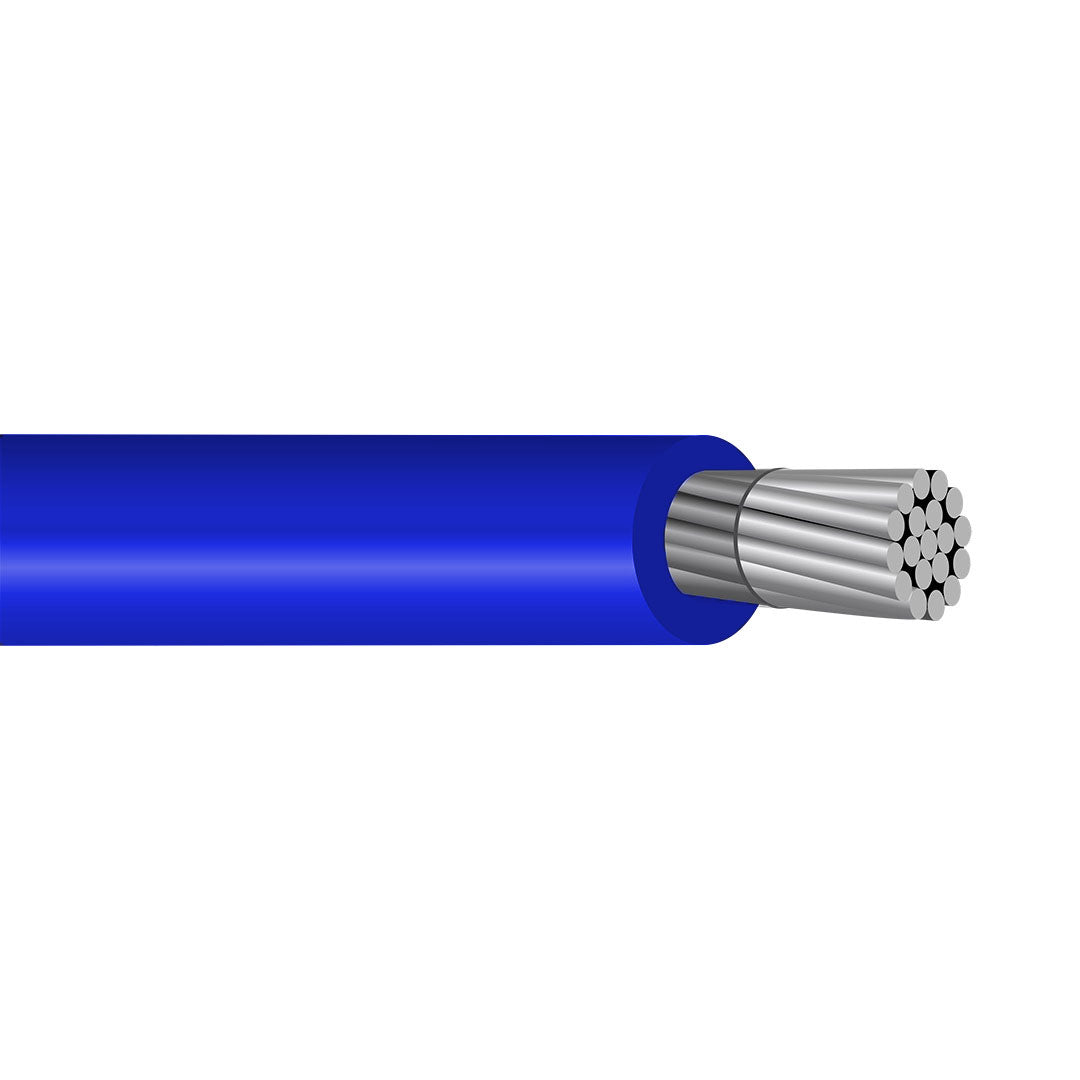

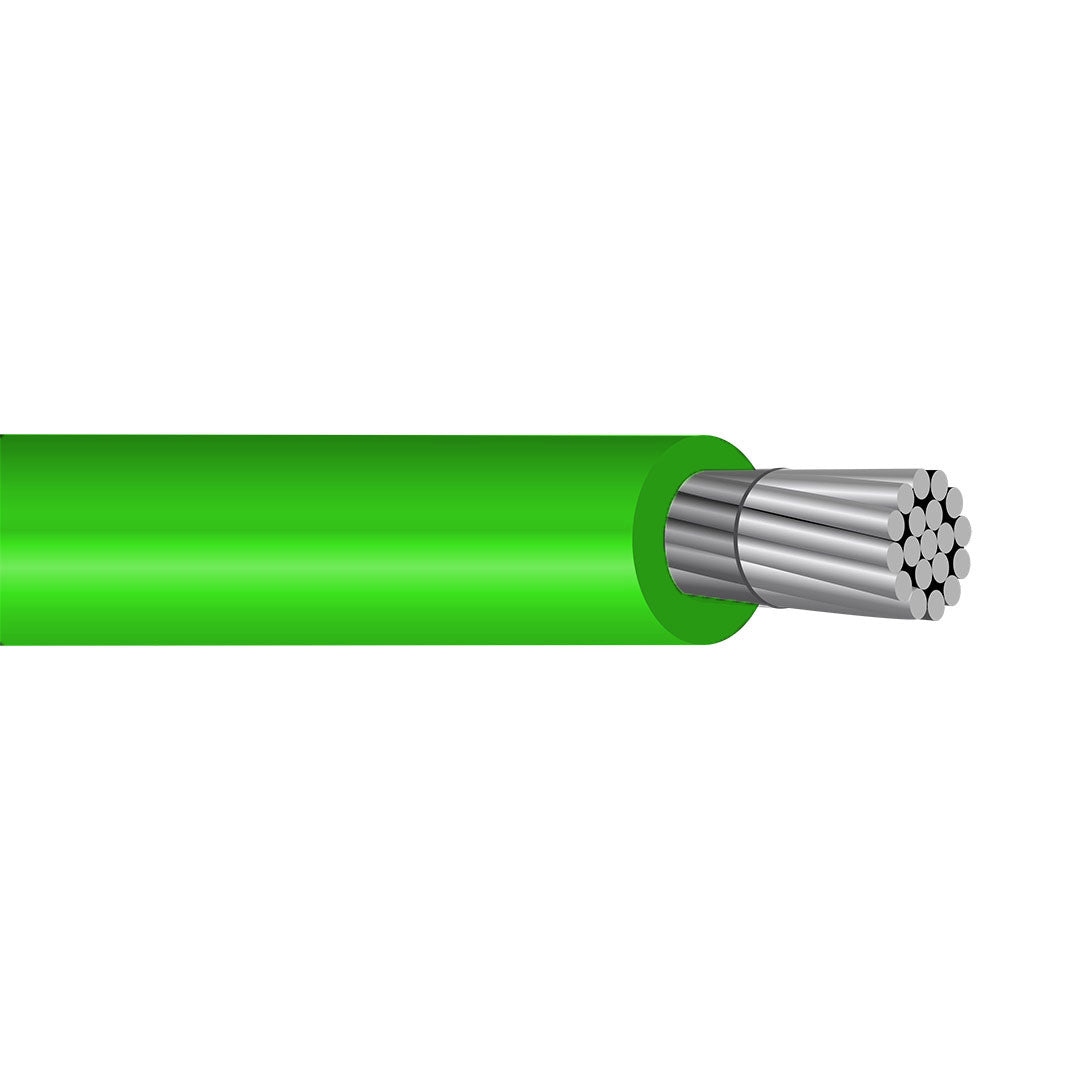

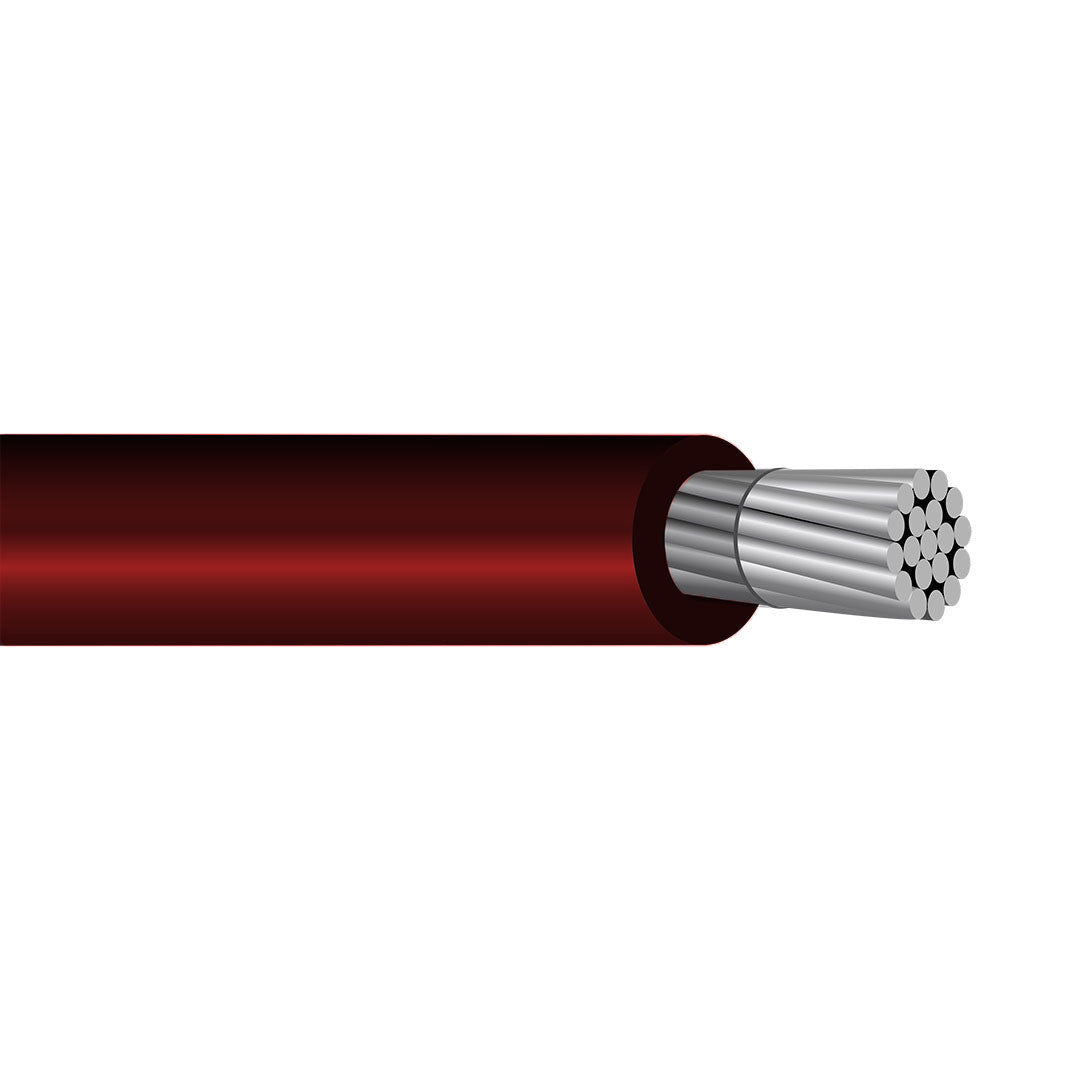

Black : M8250ST-01 Blue : M8250ST-05 Green : M8250ST-04 Orange : M8250ST-07 Red : M8250ST-03 White : M8250ST-02 Yellow : M8250ST-08 Brown : M8250ST-010 Gray : M8250ST-06 |
| Southwire : |
Black : 27834101 Blue : 57639199 Green : 56744099 Orange : 57638699 Red : 57639099 White : 57639201 Yellow : 57638799 Brown : 57638599 Gray : 57638899 |
